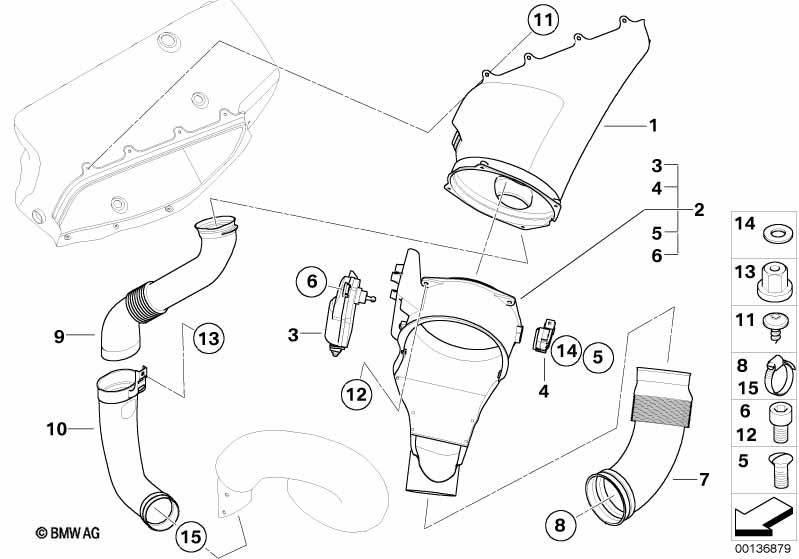

3' E46 M3 CSL Suction pipe for air duct system

Suction pipe for air duct system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Important!
See information in the TI-column.
01 Unfiltered air housing 1 11617833497 $2385.63 +core
02 Control unit 1 11617833498 $464.55 +core
03 Actuator 1 11617511383 $228.50
04 THROTTLE VALVE SWITCH 4 KOHM 1 13637840383 $96.25
05 Countersunk screw 2 11617835495
06 Fillister head with washer M6X16-Z1 SW 3 07119901913 $0.33
07 Intake tube 1 11617833648 $20.79
08 Hose clamp L95-102 1 07129952137 $1.52
09 Air duct 1 11617833646 $32.80
10 SUCTION TUBE 1 11617833645 $60.35
11 Countersunk screw M5X12-U2-A2-70 4 07119905016 $2.56
12 Fillister head with washer M6X20-Z1 SW 4 07119901780 $0.33
13 Plastic nut M6 1 16131176747 $0.53
14 Washer 9X4,3X0,8-200HV 2 07119904205 $0.07
15 Hose clamp L65-72 1 07129952127 $1.89
Notes
  • +core = plus core charge (possibility of a return of the old part)
