Z3 E36 Z3 M Engine block

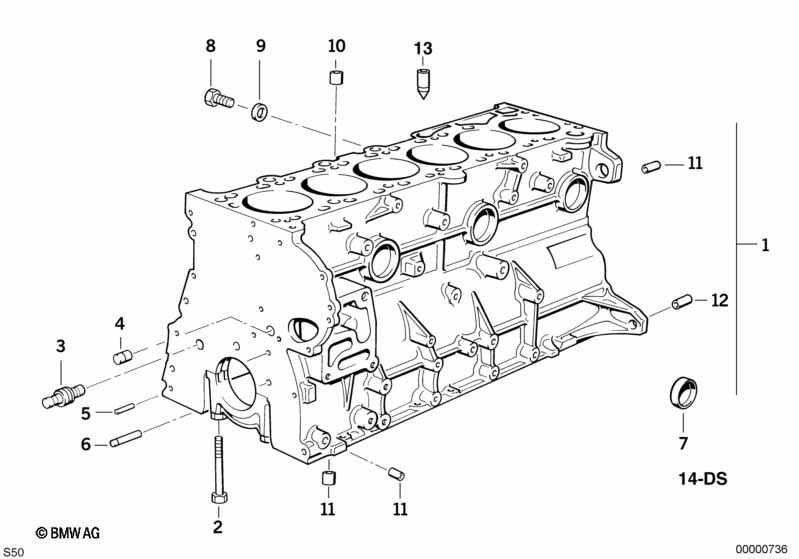

Engine block
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine block with piston D=86,4MM 1 11111405258 $4790.94
02 Hex bolt M10X80 14 11112244286 $1.03
03 Bolt 1 11111317548 $30.13
04 Plug D=12,0MM 4 11111268539 $0.58
05 Dowel pin 6X32 1 07119942169 $0.21
06 Bolt 1 11111706500 $4.12
07 Cover lid D=45MM 7 11111714712 $3.32
08 Screw plug M14X1,5-ZNS 1 07/2000 07119900445 $2.35 ENDED
08 Screw plug M14X1,5-ST-ZNS3 1 07119904392 $2.08
09 Gasket ring A14X18-AL 1 07119963200 $0.38
10 Dowel D=13,5MM 2 11121726243 $1.62
11 Dowel D=10,5MM 6 11121726238 $1.62
12 Dowel D=14,5MM 2 11111743118 $1.65
13 Jet 1 11111403958 $6.21
14 Gasket Set Engine Block Asbesto Free 1 11111402381 $223.72
Notes
  • ENDED = the part has been discontinued (no longer available).
