Z3 E36 Z3 M Cylinder Head

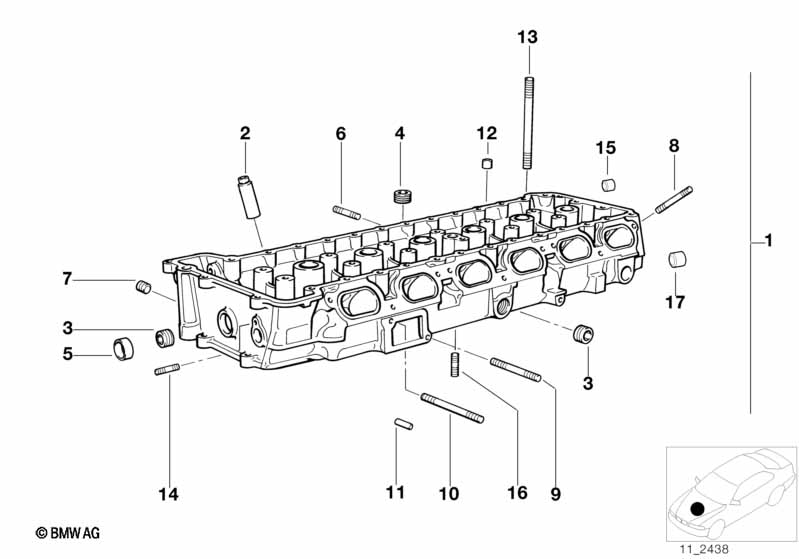

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder Head 1 11121403475 $5691.60
03 Screw plug M24X1,5 3 11121402663 $5.28
04 Screw plug M18X1.5-ZNNIV 6 11117545231 $3.78
05 Cover lid D=28MM 1 07119937293 $0.54
06 Stud bolt M7X35 X 07129908094 $2.69
07 Screw plug M10X1 1 11122244830 $2.12
08 Stud bolt M7X45 9 07129908199 $0.89
09 Stud bolt M7X50-10.9-PHR 1 07129908191 $0.30
10 Stud bolt M7X75 1 07129908093 $2.35
11 Pin 1 11231263911 $0.92
12 Dowel D=10,5MM 2 11121726238 $1.62
13 Stud bolt M8X105 X 07129908095 $6.96
14 Stud bolt M6X22 1 07129908099 $2.35
15 Cover lid D=10MM 1 07119937211 $0.37
16 Stud bolt M6X35-ZN 2 07129908103 $0.25
17 Cover lid D=14MM 1 07119937227 $0.59
