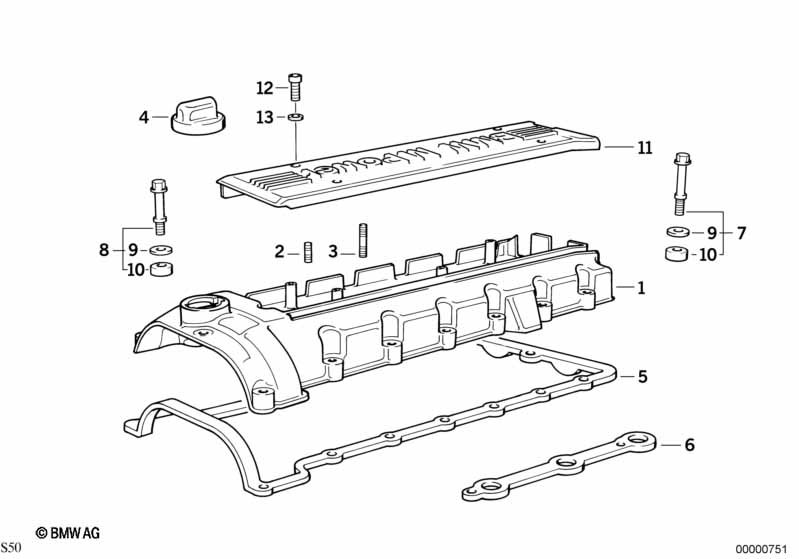

Z3 E36 Z3 M CYLINDER HEAD/CYLINDER HEAD COVER

CYLINDER HEAD/CYLINDER HEAD COVER
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head cover 1 11121403962 $540.74 +core
02 Stud bolt M6X25-ZN 2 07129908100 $0.20
02 Stud bolt M6X20 1 07129908158
03 Stud bolt M6X35-ZN X 07129908103 $0.25
04 Cap for oil filler 1 11121716993 $5.36
05 PROFILE-GASKET 1 11121404358 $43.57
06 PROFILE-GASKET 2 11121402637 $24.02
07 Collar screw M6X42 X 11121403470 $3.17
08 Collar screw M6X27 5 11121403473 $2.17
09 Washer X 07/2000 11121721896 $1.50 ENDED
09 Washer 10-200 HV-ZNNIV X 07119904168 $8.35
10 Rubber seal X 11121721879 $1.20
11 Cover 1 11121405066 $213.06
12 Fillister-head screw M6X16 4 07119919801 $0.60
13 Washer 6,4 4 07119931087 $0.92
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
