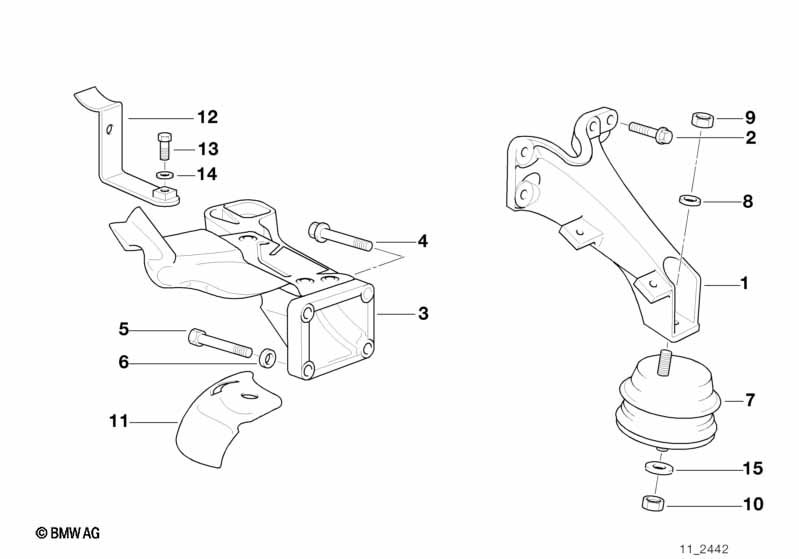

Z3 E36 Z3 M Engine Suspension / Damper

Engine Suspension / Damper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket left 1 11812227537 $32.77
02 Hex bolt with washer M8X26-Z1-ZN 8 07/2000 07119901314 $0.47 ENDED
02 Hex bolt with washer M8X26-Z1-ZNS3 8 07119902919 $0.53
03 Supporting bracket right 1 11812227302 $32.77
04 Hex bolt with washer M8X26-SZ-Z1 2 07/2000 07119913724 $0.71 ENDED
04 Hex bolt with washer M8X26-Z1-ZNS3 2 07119902919 $0.53
05 Hex bolt M8X55 2 07119912524 $0.54 ENDED
05 Hex bolt M8X55-8.8 2 07119902957 $5.27
06 Washer A8,4 2 07/2000 07119900052 $0.11 ENDED
06 Washer 8,4X16X1,6-ZNNV 2 07119907030
07 Engine mount 2 11812283798 $77.94
Required for repair
-- Flange nut M10 4 22116779973 $0.68
08 Washer A10,5 2 01/1999 07119931096 $0.22
09 SELF-LOCKING HEX NUT M10 2 01/1999 07129964672 $0.36
09 Flange nut M10 2 01/1999 22116779973 $0.68
10 SELF-LOCKING HEX NUT M10 2 32101133077 $2.50
11 Heat Protection Plate Right 1 11811137776 $4.91
12 Holder, heat protection sheet 1 11812227384 $6.69
13 Hex bolt M6X10 1 07/2000 07119913426 $0.25
13 Hex bolt M6X10-8.8-ZNS3 1 07119904633 $0.20
14 Washer 6,4 1 05/1990 07119931044 $0.58 ENDED
14 Washer A6,4-ZNS 1 07/2000 07119931018 $0.40 ENDED
14 Washer A6,4-ZNNIV SI 1 07119904202
Notes
  • ENDED = the part has been discontinued (no longer available).
