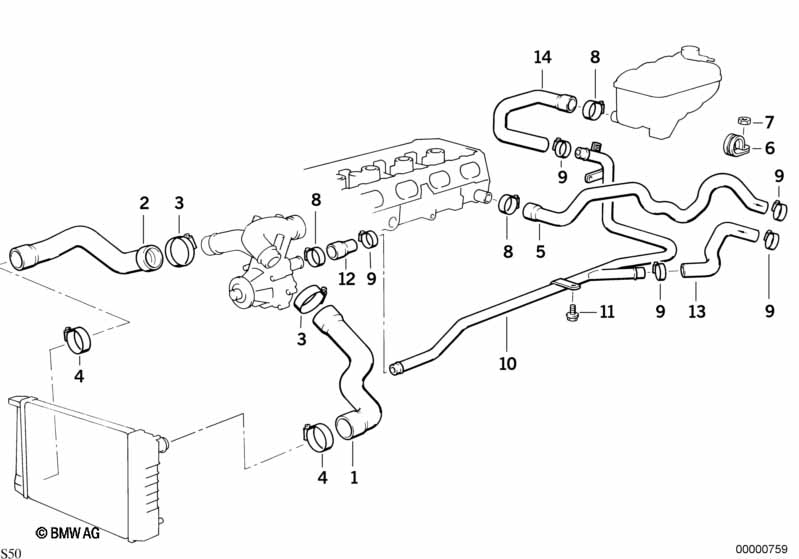

Z3 E36 Z3 M Cooling System Water Hoses

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 WATER HOSE 1 11531317394 $26.42
02 WATER HOSE 1 11531401726 $26.42
03 Hose clamp L42-48 2 07129952119 $1.15
04 Hose clamp L42-48 2 07129952119 $1.15
05 HOSE F ENGINE INLET AND WATER VALVE 1 11531406462 +core
06 Clamp D=28/6,4 1 11531267334 $1.61
07 Cap nut M6 1 11121401517 $4.50
08 Hose clamp L28-33 1 07129952113 $0.96
09 Hose clamp L16-30 1 64218367179 $1.07
10 Pipe 1 11531318403 $83.62
11 Hex bolt with washer M6X12-Z3 1 08/1990 07119915013 $0.24 ENDED
11 Hex bolt M6X12 1 07119913013 $1.22
12 HOSE CONNECTION 1 11531318404 $17.60
13 HOSE F RADIATOR AND ENGINE RETURN 1 11531405200
14 WATER HOSE 1 11531406463 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
