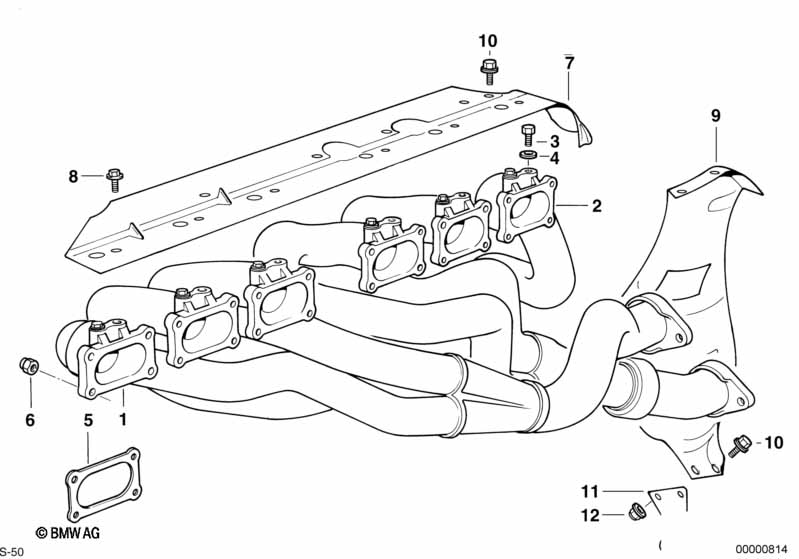

Z3 E36 Z3 M Exhaust manifold

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold, front ZYL.1-3 1 11621404694 $1116.41
02 Exhaust manifold, rear ZYL.4-6 1 11621406162 +core
03 Screw plug CM8X1 6 07119919210 $2.24
04 Gasket ring D8X11,5-CU 6 07119963045 $0.47
05 Gasket Asbestos Free 6 11621317109 $10.94 ENDED
05 Gasket Asbestos Free 6 11621317631
Required for repair
-- Hex nut 24 11721437202 $0.72
06 Hex nut X 11721437202 $0.72
07 Protective COVER 1 11621406171
08 Hex bolt with washer M6X12-Z3-2 6 07119915014 $3.47
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
