Z3 E36 Z3 M CYLINDER HEAD/INTERMEDIATE HOUSING

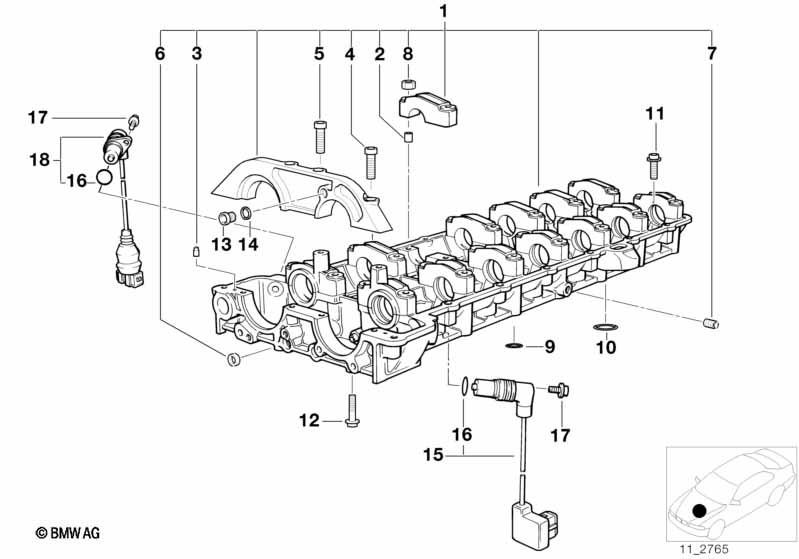

CYLINDER HEAD/INTERMEDIATE HOUSING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing gear housing 1 11121403686 $2071.71 +core
02 Dowel 6X11,6MM X 11241315668 $1.18
03 Pin 2 11231263911 $0.92
04 Fillister-head screw 2 11121402085 $1.68
05 Fillister-head screw 2 11121403708 $2.17
06 Cover lid D=12MM 2 07119937234 $0.22
07 Screw plug M10X1 5 11122244830 $2.12
08 Collar nut M8 X 07/2000 07119915500 $0.38 ENDED
08 Hex nut M8-ZNS3 X 07119904024 $0.20
09 O-ring 12X1,5 2 11121304173 $2.21
10 O-ring 28X2 6 11121304174 $3.25
11 Fillister head with washer M7X30-Z1 X 11121312307 $1.62
12 Fillister head with washer M6X25-U1 3 07119905811 $0.80 ENDED
12 Internal Torx screw with washer M6X25-U1-8.8 3 07129905558 $0.44
15 Intake camshaft sensor 1 12141404765 $90.58
16 O-ring 18X1,2 1 12141402705 $1.07
17 Fillister head with washer M6X16-Z1-8.8-ZN 2 07/2000 07119920067 $0.60 ENDED
17 Fillister head with washer M6X16-Z1-8.8 2 07119902316 $2.84
18 Exhaust camshaft sensor 1 12141404737 $90.58 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
