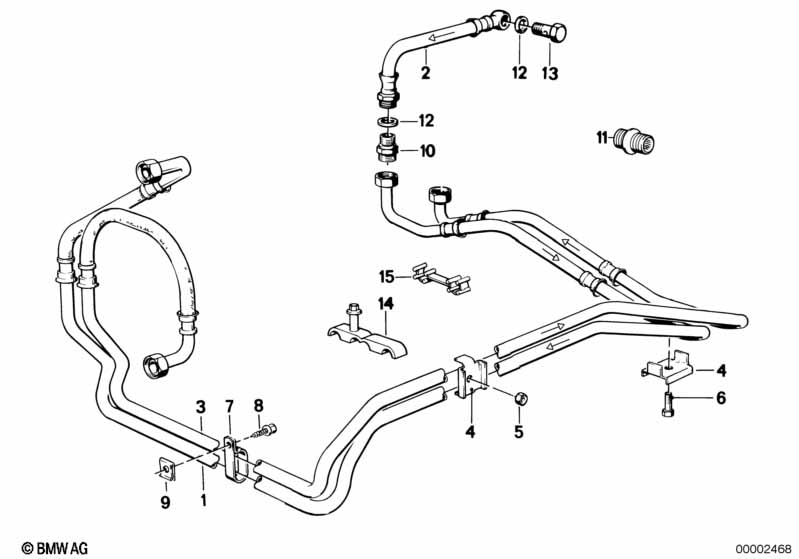

5' E28 535i TRANSMISSION OIL COOLING

TRANSMISSION OIL COOLING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 OIL COOLING PIPE INLET 4HP22 1 17221177287 $70.83
For vehicles with
Air conditioning

=Yes
01 OIL COOLING PIPE INLET 4HP22 1 09/1983 17221177287 $70.83
02 OIL COOLING PIPE INLET 4HP22 1 09/1983 12/1986 17221177269 $39.90 ENDED
02 OIL COOLING PIPE INLET 4HP22 1 09/1983 12/1986 17221707538 $43.86
only in conjunction with
-- THREADED PIPE JOINT M16-M18X1,5 1 09/1983 12/1986 17221707533 $9.12
-- Gasket ring A16X22-CU 1 09/1983 12/1986 07119963276 $0.71
03 OIL COOLING PIPE OUTLET 4HP22 1 09/1984 17221712243 $75.06
For vehicles with
Air conditioning

=Yes
03 OIL COOLING PIPE OUTLET 4HP22 1 09/1983 17221712243 $75.06
04 Clamp 3 09/1983 17221116130 $2.85
05 Hex nut M6-8-ZNS 2 09/1983 07119922832 $0.37 ENDED
05 Hex nut M6-8-ZNNIV SI 2 09/1983 07119905543 $0.38
06 Hex bolt M6X22-8.8-ZNS3 1 09/1983 07119904505 $0.38
07 Clamp 3 09/1983 17221152890 $0.96
08 Hex head screw ST4,2X13-C-Z2 3 09/1983 07119916914 $0.18
09 Body nut ST4,2-2 3 09/1983 07129904245 $0.25
10 THREADED PIPE JOINT M16-M18X1,5 1 09/1983 12/1986 17221707533 $9.12
10 THREADED PIPE JOINT M16-M18X1,5 1 09/1983 17221707533 $9.12
12 Gasket ring A16X22-CU 2 09/1983 12/1986 07119963276 $0.71
Notes
  • ENDED = the part has been discontinued (no longer available).
