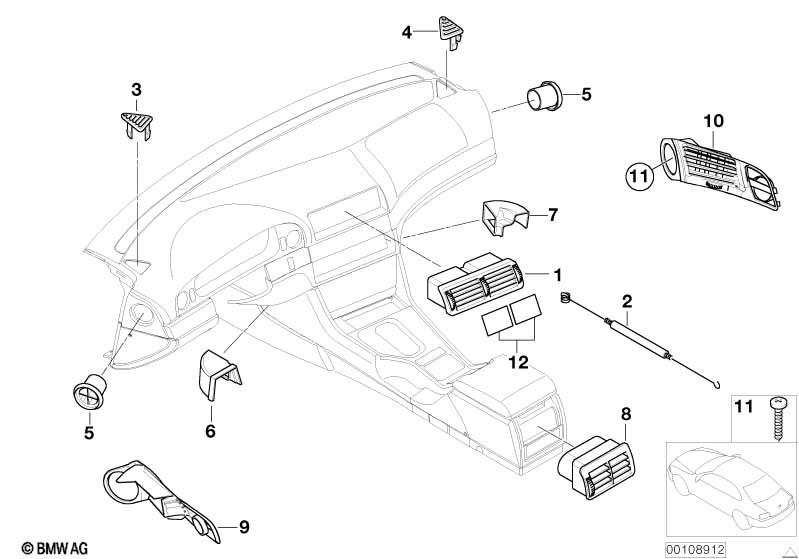

5' E39 M5 OUTFLOW NOZZLES/COVERS

OUTFLOW NOZZLES/COVERS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 FRESH AIR GRILLE CENTER SCHWARZ 1 64228364021 $81.32
only in conjunction with
01 FRESH AIR GRILLE CENTER MARINEBLAU 1 64228364022 $81.32 +core
only in conjunction with
01 FRESH AIR GRILLE CENTER DUNKELBEIGE 1 64228364023 $81.32 +core
only in conjunction with
01 FRESH AIR GRILLE CENTER ENGLISCH GRUEN 1 64228364024 $81.32 +core
only in conjunction with
-- Bowden cable temperature control 1 64118391800 $9.08
02 Bowden cable temperature control 1 64118391800 $9.08
03 COVERING DEFROSTER NOZZLE LEFT SCHWARZ 1 64228198971 $14.82
03 COVERING DEFROSTER NOZZLE LEFT MARINEBLAU 1 64228198973 $15.40
03 COVERING DEFROSTER NOZZLE LEFT DUNKELBEIGE 1 64228198975 $14.82
03 COVERING DEFROSTER NOZZLE LEFT ENGLISCH GRUEN 1 64228198977 $14.82
04 COVERING DEFROSTER NOZZLE RIGHT SCHWARZ 1 64228198972 $14.82
04 COVERING DEFROSTER NOZZLE RIGHT MARINEBLAU 1 64228198974 $15.40
04 COVERING DEFROSTER NOZZLE RIGHT DUNKELBEIGE 1 64228198976 $14.82
04 COVERING DEFROSTER NOZZLE RIGHT ENGLISCH GRUEN 1 64228198978 $14.82
05 AIR NOZZLE DOOR VENTILATION 2 12/2004 64227026133 $7.88 ENDED
05 AIR NOZZLE DOOR VENTILATION 2 64228159753 $31.11
06 LEFT FLOOR HEATER DUCT 1 64118368031 $5.52
07 RIGHT FLOOR HEATER DUCT 1 64118368032 $4.02
08 FRESH AIR GRILLE REAR ROOM 1 09/1997 64228391182 $85.66 +core
08 FRESH AIR GRILLE REAR ROOM 1 09/1997 64228376150 $139.23
For vehicles with
Center console to the rear
ONLY APPLIES TO BLOWER REAR

S445A=Yes
08 FRESH AIR GRILLE REAR ROOM 1 03/1999 64228376465 $192.59 +core
09 Fresh air grille, left SCHWARZ 1 64228364029 $101.98
09 Fresh air grille, left MARINEBLAU 1 64228364031 $101.98
09 Fresh air grille, left DUNKELBEIGE 1 64228364033 $101.98
09 Fresh air grille, left DUNKELGRUEN 1 64228364035 $101.98
10 Fresh air grille, right SCHWARZ 1 64228364030 $101.98
10 Fresh air grille, right MARINEBLAU 1 64228364032 $101.98
10 Fresh air grille, right DUNKELBEIGE 1 64228364034 $101.98
10 Fresh air grille, right DUNKELGRUEN 1 64228364036 $101.98
11 Sheet metal screw 5,5X19 1 07/1998 07119900286 $0.29 ENDED
11 Sheet metal screw ST3,5X19-Z1 1 07119901142 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
