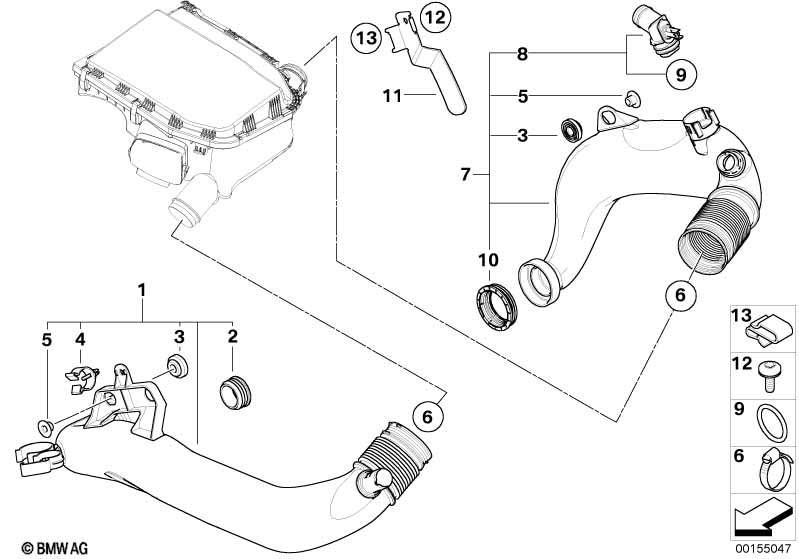

3' E93 LCI 335is Air duct

Air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct 1 13717556549 $110.44
02 Gasket ring 1 13712247398 $12.63
03 Grommet 3 13717568028 $2.73
04 Hose clamp 1 17127533721 $1.18
05 Bush with screw M6X22 3 13717568027 $4.50
06 Hose clamp L59-66 2 07129952125 $1.64
07 Air duct 1 13717556550 $110.44
08 Heater element 1 13717560227 $62.02
09 O-ring 1 13717787197 $3.75
10 Gasket ring 1 13717568029 $5.21
11 Bracket, charge-air ducting 1 13717562713 $8.48
12 Torx-bolt with washer M6X12 1 51219130334 $0.39
13 Clip 1 12521437136 $0.63
