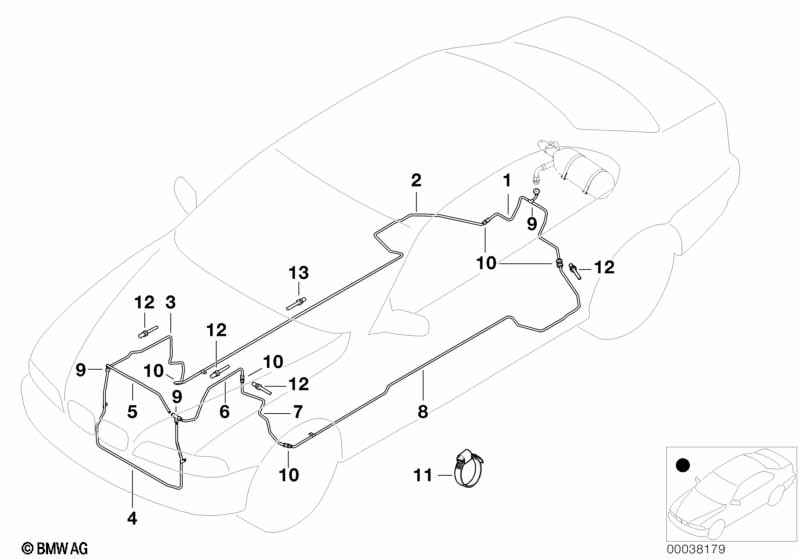

7' E38 750iLS Fire extinguishing system tubing

Fire extinguishing system tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fire exting.tubing, rear axle 1 65728131683 +core
02 Fire exting.tubing, underfloor right 1 65728131682 +core
For vehicles with
Undercoating

S187A=Yes
02 Fire exting.tubing, underfloor right 1 65728230314 +core
03 Fire exting.tubing, engine compartm.rght 1 65728244948
04 Fire exting.tubing, radiator 1 65728131688 +core
05 Fire exting.tubing, engine compartment 1 65728131684 +core
06 Fire exting.tubing, engine compartm.lft 1 65728244949
07 Fire exting.tubing, engine compartm.lft 1 65728244947
08 Fire exting.tubing, underfloor left 1 65728131681 +core
For vehicles with
Undercoating

S187A=Yes
08 Fire exting.tubing, underfloor left 1 65728230313 +core
09 T-connection piece 3 65728109052
10 Connection piece 6 65728109051
12 Temp.switch fire extinguisher rear 1 61318370626
12 Temp.switch fire extinguisher front 3 61318371002
For vehicles with
Undercoating

S187A=No
13 Temp.switch fire extinguisher center 1 61318370625
Notes
  • +core = plus core charge (possibility of a return of the old part)
