5' E34 520i Drive flange suspension/gasket ring

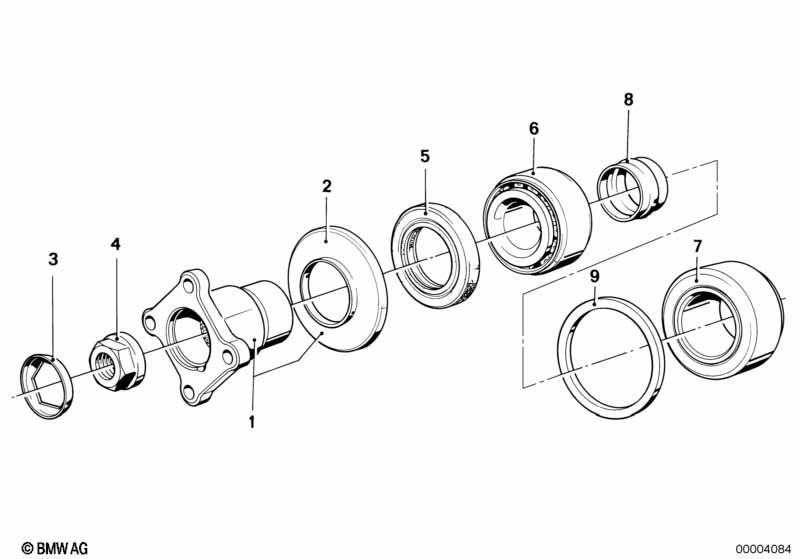

Drive flange suspension/gasket ring
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important! Drive flange and nut must
not be replaced.
02 Dustcover plate 81MM 1 33121200284 $2.38
03 Securing plate 1 23211490120 $1.43
05 Shaft seal 45X75X10 1 33101214099 $17.42 ENDED
05 Shaft seal 45X75X10 AW 188 1 31507609535
06 Tapered roller bearing 31,7X73,0X29,3 1 33121203615 $73.23 ENDED
06 Tapered roller bearing 31,7X73,0X29,3 1 33121204312
07 Tapered roller bearing 36,5X76,2X29,3 1 33121203616 $73.23 ENDED
07 Tapered roller bearing 1 33121204315
08 Clamping bush 1 33121744368 $9.14
09 Spacer rings set 3,255MM-3,435MM X 33129065179 $36.42
Notes
  • ENDED = the part has been discontinued (no longer available).
