5' E34 520i Rear axle carrier

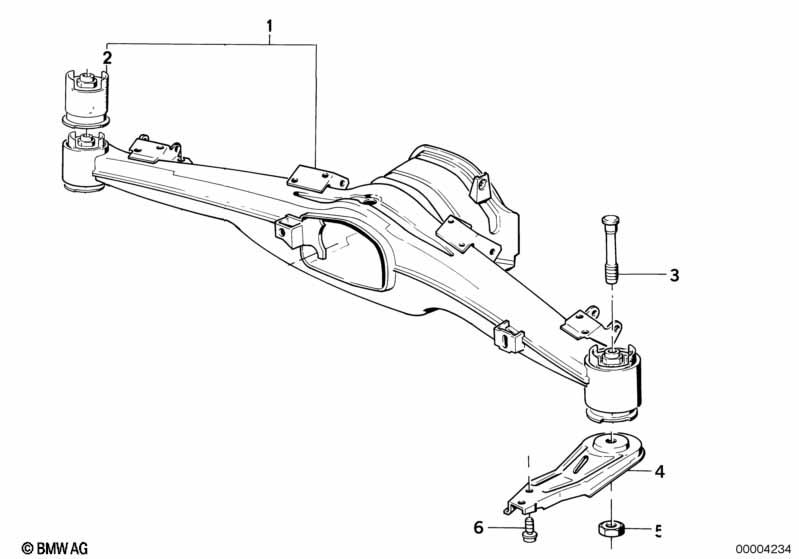

Rear axle carrier
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear axle carrier 1 33311133551 $856.53
02 Rubber Mounting 2 33311128670 $54.46
03 Knurled bolt M14X170,6 2 51718181460 $6.63
04 Push rod left 1 33321130351 $33.91
04 Push rod right 1 33321130352 $33.91
05 Collar nut M14X1,5 2 33331126136 $1.93
06 Hex bolt with washer M8X20-Z1 4 06/1996 07119915093 $0.47 ENDED
06 Hex bolt with washer M8X20-ZNS3 4 07147165618 $0.73
Notes
  • ENDED = the part has been discontinued (no longer available).
