5' G30 520dX Locking system, door, front

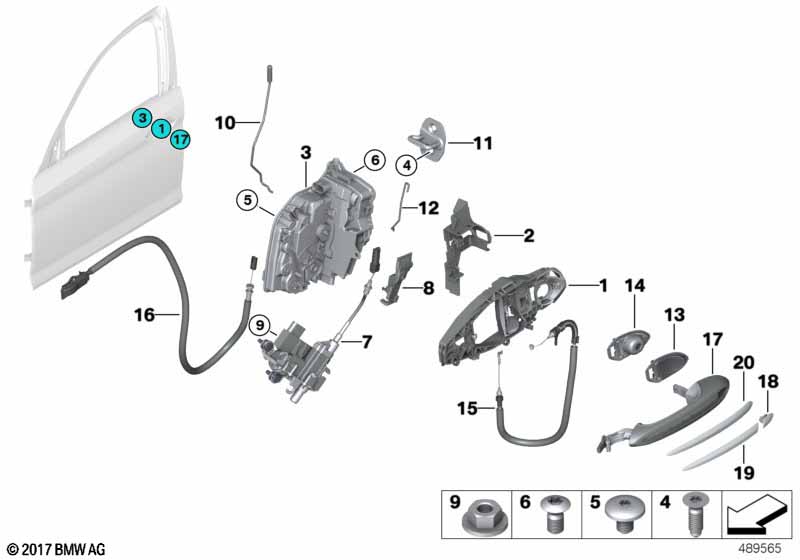

Locking system, door, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carrier, outside door handle, left 1 51217401203
01 Carrier, outside door handle, right 1 51217401204
For vehicles with
Comfort access

S322A=Yes
01 Carrier, outside door handle, left CA 1 51217401205
01 Carrier, outside door handle, right CA 1 51217401206
02 Adapter for support member, front left LL 1 51217339476
03 System latch, left 1 51217281931
03 System latch, right 1 51217281934
For vehicles with
Soft-Close-Automatic doors

S323A=Yes
03 Door lock, front left SCA 1 51217281945
03 Door lock, front right SCA 1 51217281948
For vehicles with
Thiefproofing device

S8TGA=Yes
03 System latch, left ZS 1 51217281935
03 System latch, right ZS 1 51217281938
For vehicles with
Soft-Close-Automatic doors
and
Thiefproofing device

S323A=Yes

S8TGA=Yes
03 Door lock, front left SCA / ZS 1 51217281949
03 Door lock, front right SCA / ZS 1 51217281952
04 Countersunk head screw 4 51212755020 $0.69
05 Torx-bolt with washer ISA M8X12 2 07149149652 $0.45
06 Csk.fillister head srew M6X11,5-10.9 MA 4 07147437063
For vehicles with
Soft-Close-Automatic doors

S323A=Yes
07 Drive soft close automatic left front 1 11/2016 51217410823 ENDED
07 Drive soft close automatic left front 1 51217480739
07 Drive soft close automatic right front 1 11/2016 51217410824 ENDED
07 Drive soft close automatic right front 1 51217480740
08 Left bowden cable cover SCA 1 51217325297
08 Right bowden cable cover SCA 1 51217325298
09 Hex nut M5 2 63259128043 $0.72
10 Operating rod, door front left 1 51217339465
10 Operating rod, door front right 1 51217339466
11 Lock striker with base 2 51217394436
12 Lockrod, left LL 1 51217339474
13 Cover for grip, lower right LL 1 07/2017 51217401208 ENDED
13 Cover for grip, lower right LL 1 51217497722
14 Attachment cap, left 1 51217497723
15 Bowd.cable,outside door handle front 2 51217339472
16 Bowden cable, door opener, front 2 51217339444
17 Outside door handle, primed, right BASIS 1 51217489322
17 Outside door handle, primed, left BASIS LL 1 51217489323
For vehicles with
Comfort access
----------------------------------------
Only for not listed and
individual option colors.
----------------------------------------

S322A=Yes
17 Door handle, primed, outer right CA / OVT 1 51219491470
17 Door handle, primed, outer left CA / OVT LL 1 51219491471
For vehicles with
Comfort access
and
marina-bay-blau metallic

S322A=Yes

WC1K=Yes
17 Door handle, painted, exterior left MARINA BAY BLUE 1 11/2016 51218058677 ENDED, NoS
17 Door handle, painted, exterior left MARINA BAY BLUE 1 51218492265
17 Door handle, painted, exterior right MARINA BAY BLUE 1 11/2016 51218058686 ENDED, NoS
17 Door handle, painted, exterior right MARINA BAY BLUE 1 51218492216
For vehicles with
Comfort access
and
donington-grau metallic

S322A=Yes

WC28=Yes
17 Door handle, painted, exterior left DONINGTON GRAU 1 11/2016 51218058941 ENDED, NoS
17 Door handle, painted, exterior left DONINGTON GRAU 1 51218492269 NoS
17 Door handle, painted, exterior right DONINGTON GRAU 1 11/2016 51218058956 ENDED, NoS
17 Door handle, painted, exterior right DONINGTON GRAU 1 51218492220 NoS
For vehicles with
Comfort access
and
singapur-grau metallic

S322A=Yes

WB41=Yes
17 Door handle, painted, exterior left SINGAPUR GRAU 1 11/2016 51218058943 ENDED, NoS
17 Door handle, painted, exterior left SINGAPUR GRAU 1 51218492253 NoS
17 Door handle, painted, exterior right SINGAPUR GRAU 1 11/2016 51218058958 ENDED, NoS
17 Door handle, painted, exterior right SINGAPUR GRAU 1 51218492208 NoS
For vehicles with
Comfort access
and
carbon-schwarz

S322A=Yes

M416=Yes
17 Door handle, painted, exterior left CARBONSCHWARZ 1 11/2016 51218071339 ENDED, NoS
17 Door handle, painted, exterior left CARBONSCHWARZ 1 51218492235
17 Door handle, painted, exterior right CARBONSCHWARZ 1 11/2016 51218071338 ENDED, NoS
17 Door handle, painted, exterior right CARBONSCHWARZ 1 51218492176
For vehicles with
Comfort access
and
moonlight-silver metallic

S322A=Yes

WB66=Yes
17 Door handle, painted, exterior right M-LIGHT SILVER 1 11/2016 51217455158 ENDED, NoS
17 Door handle, painted, exterior right M-LIGHT SILVER 1 51218493208
For vehicles with
Comfort access
and
blue-stone metallic

S322A=Yes

WC2Y=Yes
17 Door handle, painted, exterior left BLUESTONE 1 11/2016 51217460107 ENDED, NoS
17 Door handle, painted, exterior left BLUESTONE 1 51218492275
17 Door handle, painted, exterior right BLUESTONE 1 11/2016 51217460022 ENDED, NoS
17 Door handle, painted, exterior right BLUESTONE 1 51218492226
For vehicles with
Comfort access
and
snappper-rocks-blue metallic

S322A=Yes

WC1G=Yes
17 Door handle, painted, exterior left SNAPPER R. BLUE 1 11/2016 51218073709 ENDED, NoS
17 Door handle, painted, exterior left SNAPPER R. BLUE 1 51218492263 NoS
17 Door handle, painted, exterior right SNAPPER R. BLUE 1 11/2016 51218073706 ENDED, NoS
17 Door handle, painted, exterior right SNAPPER R. BLUE 1 51218492214 NoS
For vehicles with
Comfort access
and
Ambient interior lighting
----------------------------------------
Only for not listed and
individual option colors.
----------------------------------------

S322A=No

S4URA=Yes
17 Door handle, primed, outer right OVT 1 51219491466
17 Door handle, primed, outer left OVT LL 1 51219491467
For vehicles with
Comfort access
and
black-sapphire metallic

S322A=Yes

M475=Yes
17 Door handle, painted, exterior left BLACK SAPHIR 1 11/2016 51217443079 ENDED, NoS
17 Door handle, painted, exterior left BLACK SAPHIR 1 51218492237
17 Door handle, painted, exterior right BLACK SAPHIR 1 11/2016 51217443060 ENDED, NoS
17 Door handle, painted, exterior right BLACK SAPHIR 1 51218492182
For vehicles with
Comfort access
and
kaschmir-silver metallic

S322A=Yes

WA72=Yes
17 Door handle, painted, exterior left KASCHMIRSILBER 1 11/2016 51217443081 ENDED, NoS
17 Door handle, painted, exterior left KASCHMIRSILBER 1 51218492243
17 Door handle, painted, exterior right KASCHMIRSILBER 1 11/2016 51217443062 ENDED, NoS
17 Door handle, painted, exterior right KASCHMIRSILBER 1 51218492194
For vehicles with
Comfort access
and
glacier-silber metallic

S322A=Yes

WA83=Yes
17 Door handle, painted, exterior left GLACIERSILBER 1 11/2016 51217443083 ENDED, NoS
17 Door handle, painted, exterior left GLACIERSILBER 1 51218492245
17 Door handle, painted, exterior right GLACIERSILBER 1 11/2016 51217443064
17 Door handle, painted, exterior right GLACIERSILBER 1 51218492198
For vehicles with
Comfort access
and
sophisto-grau brillant metallic

S322A=Yes

WA90=Yes
17 Door handle, painted, exterior left SOPHISTOGRAU 1 11/2016 51217443087 ENDED, NoS
17 Door handle, painted, exterior left SOPHISTOGRAU 1 51218492249
17 Door handle, painted, exterior right SOPHISTOGRAU 1 11/2016 51217443068 ENDED, NoS
17 Door handle, painted, exterior right SOPHISTOGRAU 1 51218492204
For vehicles with
Comfort access
and
black 2

S322A=Yes

U668=Yes
17 Door handle, painted, exterior left SCHWARZ 2 1 11/2016 51217417827 NoS
17 Door handle, painted, exterior left SCHWARZ 2 1 51218492241
17 Door handle, painted, exterior right SCHWARZ 2 1 11/2016 51217417816 ENDED, NoS
17 Door handle, painted, exterior right SCHWARZ 2 1 51218492190
For vehicles with
Comfort access
and
alpinweiss 3

S322A=Yes

U300=Yes
17 Door handle, painted, exterior left ALPINWEISS 3 1 11/2016 51217417825 ENDED, NoS
17 Door handle, painted, exterior left ALPINWEISS 3 1 51218492239
17 Door handle, painted, exterior right ALPINWEISS 3 1 11/2016 51217417814 ENDED, NoS
17 Door handle, painted, exterior right ALPINWEISS 3 1 51218492186
For vehicles with
Comfort access
and
imperial-blau brillant metallic

S322A=Yes

WA89=Yes
17 Door handle, painted, exterior left IMPERIALBLAU 1 11/2016 51217443085 ENDED, NoS
17 Door handle, painted, exterior left IMPERIALBLAU 1 51218492247
17 Door handle, painted, exterior right IMPERIALBLAU 1 11/2016 51217443066 ENDED, NoS
17 Door handle, painted, exterior right IMPERIALBLAU 1 51218492202
For vehicles with
Comfort access
and
atlas-zeder metallic

S322A=Yes

WC2P=Yes
17 Door handle, painted, exterior left ATLASZEDER 1 51217443097
17 Door handle, painted, exterior right ATLASZEDER 1 51217443078
For vehicles with
Comfort access
and
royal-burgundy-red Brillanteffekt

S322A=Yes

WC25=Yes
17 Door handle, painted, exterior left ROYAL BURG. RED 1 11/2016 51217445541 ENDED, NoS
17 Door handle, painted, exterior left ROYAL BURG. RED 1 51218492267 NoS
17 Door handle, painted, exterior right ROYAL BURG. RED 1 11/2016 51217445530 ENDED, NoS
17 Door handle, painted, exterior right ROYAL BURG. RED 1 51218492218 NoS
For vehicles with
Comfort access
and
jucaro-beige metallic

S322A=Yes

WC2S=Yes
17 Door handle, painted, exterior left JUCAROBEIGE 1 11/2016 51217445543 ENDED, NoS
17 Door handle, painted, exterior left JUCAROBEIGE 1 51218492273 NoS
17 Door handle, painted, exterior right JUCAROBEIGE 1 11/2016 51217445532 ENDED, NoS
17 Door handle, painted, exterior right JUCAROBEIGE 1 51218492224
For vehicles with
Comfort access
and
mineral-weiss metallic

S322A=Yes

WA96=Yes
17 Door handle, painted, exterior left MINERALWEIß 1 11/2016 51217443089 ENDED, NoS
17 Door handle, painted, exterior left MINERALWEIß 1 51218492251
17 Door handle, painted, exterior right MINERALWEIß 1 11/2016 51217443070 ENDED, NoS
17 Door handle, painted, exterior right MINERALWEIß 1 51218492206
For vehicles with
Comfort access
and
Jatoba metallic

S322A=Yes

WB65=Yes
17 Door handle, painted, exterior left JATOBA 1 51217443091
17 Door handle, painted, exterior right JATOBA 1 51217443072
For vehicles with
Comfort access
and
mediterran-blau metallic

S322A=Yes

WC10=Yes
17 Door handle, painted, exterior left MEDITERRANBLAU 1 11/2016 51217443093 ENDED, NoS
17 Door handle, painted, exterior left MEDITERRANBLAU 1 51218492261
17 Door handle, painted, exterior right MEDITERRANBLAU 1 11/2016 51217443074 ENDED, NoS
17 Door handle, painted, exterior right MEDITERRANBLAU 1 51218492212
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
platin-silber metallic

S322A=No

S4URA=Yes

WC08=Yes
17 Door handle, painted, exterior left PLATINSILBER 1 51217455179 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
jucaro-beige metallic

S322A=No

S4URA=Yes

WC2S=Yes
17 Door handle, painted, exterior left JUCAROBEIGE 1 51217445539 NoS
17 Door handle, painted, exterior right JUCAROBEIGE 1 51217445528 NoS
17 Door handle, painted, exterior right PLATINSILBER 1 51217455164 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
moonlight-silver metallic

S322A=No

S4URA=Yes

WB66=Yes
17 Door handle, painted, exterior left M-LIGHT SILVER 1 51217455177
17 Door handle, painted, exterior right M-LIGHT SILVER 1 51217455162
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
mediterran-blau metallic

S322A=No

S4URA=Yes

WC10=Yes
17 Door handle, painted, exterior left MEDITERRANBLAU 1 51217443053
17 Door handle, painted, exterior right MEDITERRANBLAU 1 51217443034
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
atlas-zeder metallic

S322A=No

S4URA=Yes

WC2P=Yes
17 Door handle, painted, exterior left ATLASZEDER 1 51217443057 NoS
17 Door handle, painted, exterior right ATLASZEDER 1 51217443038 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
royal-burgundy-red Brillanteffekt

S322A=No

S4URA=Yes

WC25=Yes
17 Door handle, painted, exterior left ROYAL BURG. RED 1 51217445537 NoS
17 Door handle, painted, exterior right ROYAL BURG. RED 1 51217445526 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
marina-bay-blau metallic

S322A=No

S4URA=Yes

WC1K=Yes
17 Door handle, painted, exterior left MARINA BAY BLUE 1 51218058959 NoS
17 Door handle, painted, exterior right MARINA BAY BLUE 1 51218058684 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
donington-grau metallic

S322A=No

S4URA=Yes

WC28=Yes
17 Door handle, painted, exterior left DONINGTON GRAU 1 51218058961 NoS
17 Door handle, painted, exterior right DONINGTON GRAU 1 51218058952 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
singapur-grau metallic

S322A=No

S4URA=Yes

WB41=Yes
17 Door handle, painted, exterior left SINGAPUR GRAU 1 51218059079 NoS
17 Door handle, painted, exterior right SINGAPUR GRAU 1 51218058954 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
blue-stone metallic

S322A=No

S4URA=Yes

WC2Y=Yes
17 Door handle, painted, exterior left BLUESTONE 1 51217460019
17 Door handle, painted, exterior right BLUESTONE 1 51217460018
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
carbon-schwarz

S322A=No

S4URA=Yes

M416=Yes
17 Door handle, painted, exterior left CARBONSCHWARZ 1 51218071335
17 Door handle, painted, exterior right CARBONSCHWARZ 1 51218071334
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
alpinweiss 3

S322A=No

S4URA=Yes

U300=Yes
17 Door handle, painted, exterior left ALPINWEISS 3 1 51217417821
17 Door handle, painted, exterior right ALPINWEISS 3 1 51217417810
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
imperial-blau brillant metallic

S322A=No

S4URA=Yes

WA89=Yes
17 Door handle, painted, exterior left IMPERIALBLAU 1 51217443045 NoS
17 Door handle, painted, exterior right IMPERIALBLAU 1 51217443026
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
black-sapphire metallic

S322A=No

S4URA=Yes

M475=Yes
17 Door handle, painted, exterior left BLACK SAPHIR 1 51217443039
17 Door handle, painted, exterior right BLACK SAPHIR 1 51217443020
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
black 2

S322A=No

S4URA=Yes

U668=Yes
17 Door handle, painted, exterior left SCHWARZ 2 1 51217417823
17 Door handle, painted, exterior right SCHWARZ 2 1 51217417812
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
snappper-rocks-blue metallic

S322A=No

S4URA=Yes

WC1G=Yes
17 Door handle, painted, exterior left SNAPPER R. BLUE 1 51218073703 NoS
17 Door handle, painted, exterior right SNAPPER R. BLUE 1 51218073702 NoS
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
sophisto-grau brillant metallic

S322A=No

S4URA=Yes

WA90=Yes
17 Door handle, painted, exterior left SOPHISTOGRAU 1 51217443047
17 Door handle, painted, exterior right SOPHISTOGRAU 1 51217443028
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
mineral-weiss metallic

S322A=No

S4URA=Yes

WA96=Yes
17 Door handle, painted, exterior left MINERALWEIß 1 51217443049
17 Door handle, painted, exterior right MINERALWEIß 1 51217443030
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
Jatoba metallic

S322A=No

S4URA=Yes

WB65=Yes
17 Door handle, painted, exterior left JATOBA 1 51217443051 NoS
17 Door handle, painted, exterior right JATOBA 1 51217443032
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
glacier-silber metallic

S322A=No

S4URA=Yes

WA83=Yes
17 Door handle, painted, exterior left GLACIERSILBER 1 51217443043 NoS
17 Door handle, painted, exterior right GLACIERSILBER 1 51217443024
For vehicles with
  Comfort access
  and
  Ambient interior lighting
and
kaschmir-silver metallic

S322A=No

S4URA=Yes

WA72=Yes
17 Door handle, painted, exterior left KASCHMIRSILBER 1 51217443041
17 Door handle, painted, exterior right KASCHMIRSILBER 1 51217443022
Included in door handle
18 Prime coated covering BASIS 1 51217489341
For vehicles with
Comfort access
or
Ambient interior lighting
Included in door handle

S322A=Yes

S4URA=Yes
18 Covering left CHROM LL 1 51217489343
For vehicles with
Comfort access
or
Ambient interior lighting
For driver's door
Included in door handle

S322A=Yes

S4URA=Yes
19 Chrome clip, left LL 1 51219491473
For vehicles with
Comfort access
or
Ambient interior lighting
Included in door handle

S322A=Yes

S4URA=Yes
20 Chrome wedge trim 1 51219491488
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)

Copyright © RealOEM.com
