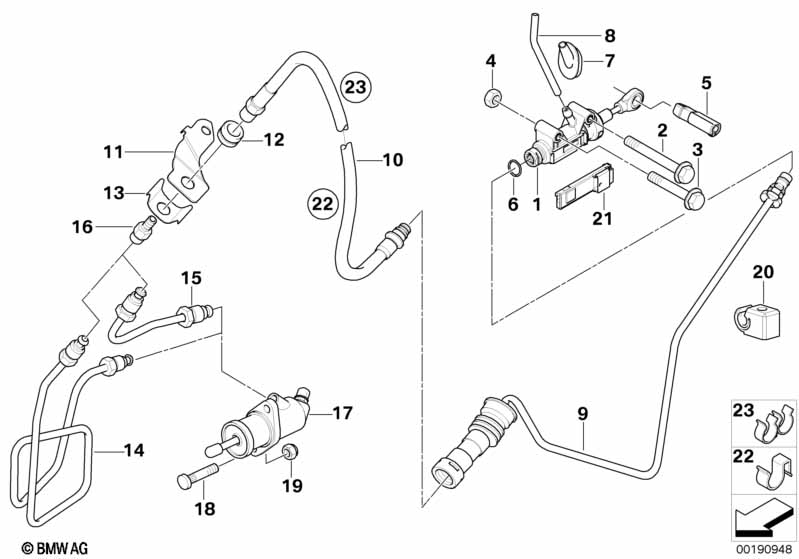

Z4 E89 Z4 30i CLUTCH CONTROL

CLUTCH CONTROL
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=No
01 Input cylinder clutch 1 21526773670 $141.70
02 Hex bolt M6X65 ZNS3 1 07119902997 $0.62
03 Hex bolt M6X45 8.8 ZNS3 1 07119902976 $0.45
04 Hex nut M6-8-ZNNIV SI 2 07129905817
05 Pin, master cylinder 1 35316854283
06 Repair kit clutch plug-in connector 1 21521165451 $6.28
07 Grommet 1 01/2013 21521156082 $1.47 ENDED
07 Grommet 1 21526863043
08 Hose 7,5X13 X 21521163714 $8.75
09 Pipe 1 21526783168 $38.22 ENDED
09 Pipe 1 21526864482
10 PRESSURE HOSE ASSY 1 07/2015 21526778819 $20.43 ENDED
10 PRESSURE HOSE ASSY 1 21526869285
11 Bracket, clutch line 1 21526765063 $1.02
12 Grommet 1 21521164603 $2.93
14 Pipe 1 21526765790 $15.33
16 LOCK VALVE 1 21526764872 $8.27
17 OUTPUT CYLINDER CLUTCH D=22,20MM 1 21526785964 $79.89
18 KNURLED BOLT 2 21511203012 $2.18
19 SELF-LOCKING HEX NUT M8-8-ZNNI SI 2 07129906196 $1.60
20 BRAKE PIPE BRACKET 1 34326855500
21 Module, clutch switch 1 61319231129
22 Cable clamp 1 07147575208 $0.89
Notes
  • ENDED = the part has been discontinued (no longer available).
