MINI R53 Cooper S JCW Tuningkit 200 HP

JCW Tuningkit 200 HP

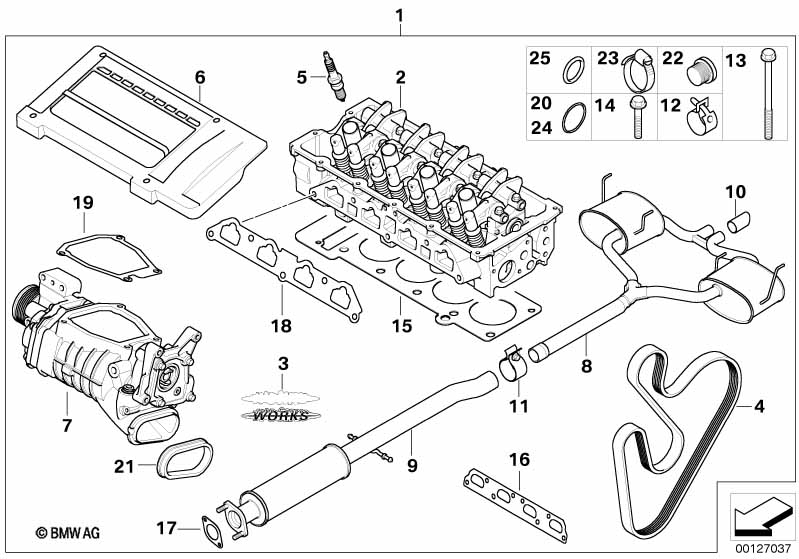

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Note: Spare parts equivalent to series
production also applicable for John
Cooper Works with the exception of
components listed here.
01 Tuningkit J. COOPER WORKS 1 01/2004 11120302673 $5990.00 ENDED, +core, EBA 0301548
02 Cylinder head with valve gear J. COOPER WORKS 1 11120301252 $2914.00
03 Ribbed v-belt 6PK X 1374 1 11287545120 $37.60 +core
03 Emblem front J. COOPER WORKS 1 51140306112 $81.00 ENDED, +core
03 Emblem rear J. COOPER WORKS 1 51140306113 $81.00 ENDED, +core
03 Front lettering J. COOPER WORKS 1 51147175101 $106.90
03 Rear lettering J. COOPER WORKS 1 51147175102 $106.90
04 Ribbed v-belt 1 09/2005 11280300802 $42.25 ENDED
04 Ribbed v-belt 6PK X 1374 1 10/2005 11287558756 $35.90 ENDED
04 Ribbed v-belt 6PK X 1374 1 11287545120 $37.60 +core
05 Spark plug, High Power NGK BKR7EQUP 4 12120031708 $44.00
06 Sealing plate, charge-air cooler J. COOPER WORKS 1 11/2006 11650301798 $133.95 ENDED, +core
06 Sealing plate, charge-air cooler 1 17517556988 $192.81
07 Supercharger J. COOPER WORKS 1 11650300354 $2024.00 ENDED, +core
07 Supercharger 1 11657556981 $2143.90 +core
07 Exch. supercharger 1 11657557875 $1614.56 ENDED
08 Sports rear silencer J. COOPER WORKS 1 01/2004 18100301875 $575.28 ENDED, +core
08 Sports rear silencer J. COOPER WORKS 1 01/2004 06/2004 18100301874 $703.54 ENDED, +core
08 Sports rear silencer J. COOPER WORKS 1 01/2004 06/2004 18100395483 $691.60 ENDED, +core
08 Sports rear silencer JCW 1 01/2004 06/2004 18207545128 $609.89 +core
09 Center muffler J. COOPER WORKS 1 09/2006 18100301876 $305.42 ENDED
09 Center muffler JCW 1 18207545127 $329.92
10 Tailpipe tip, chrome JCW 2 06/2004 82120303295 $72.50 ENDED, +core
11 Clamping bush JCW 1 10/2006 18100303296 $12.50 ENDED
11 Muffler clamp JCW D=62,3MM 1 18107573865 $13.50
12 Hose clamp 1 11650303549 $2.50 ENDED
13 Cylinder head bolt M10X150MM 10 07131487226 $3.82
14 Hex bolt with washer M8X45 2 11317829911 $1.07
15 Cylinder Head Gasket Asbestos-Free 0,65MM 1 11127508543 $66.77
16 Gasket Asbestos Free 1 11621174968 $10.94
Required for repair
-- Screw M8X30 8 07136800269 $0.87
17 Flat gasket 1 18111170941 $8.46
Required for repair
-- Hex nut wiht flange M10 2 07130757758 $1.09
18 Gasket Asbestos Free 1 11611173671 $12.02
19 Gasket 1 17511520044 $5.68
20 O-ring 34,52X3,53 1 11517509186 $2.54
21 Profile-gasket 1 11610020836 $18.02
22 Screw Plug With Gasket Ring 1 11317562528 $7.20
23 Hose clamp 1 11651521321 $5.47
24 O-ring 2 11317514982 $0.88
25 O-ring 1 12147514984 $3.61
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
