Cde soupapes-arbre a cames/graissage for BMW 3 Series E30 318is (1990)

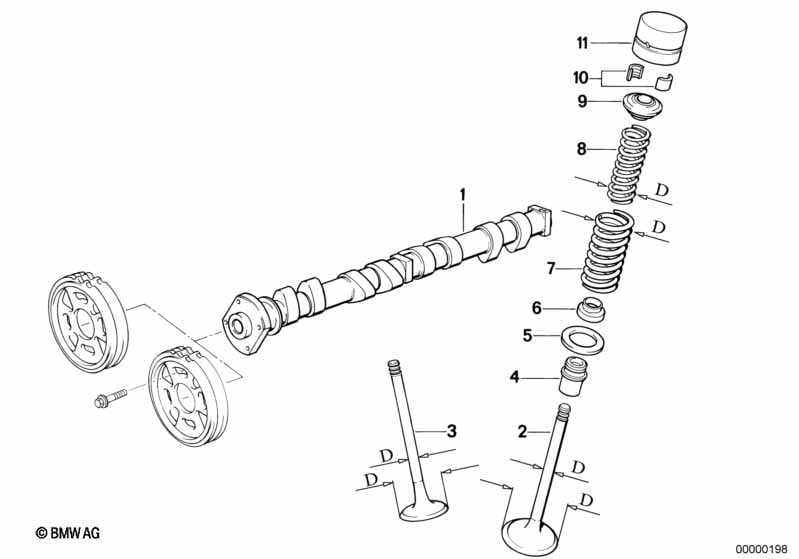

This Cde soupapes-arbre a cames/graissage technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arbre a cames d'admission | 1 | 11311727137 | $656.27 | Shop at ECS Tuning | |||||
| 01 | Arbre à cames d'échappement | 1 | 11311727138 | $702.29 | Shop at ECS Tuning | |||||
| 02 | Soupape d'admission | 33,0/6,97MM | 8 | 11341722908 | $44.04 | arrêté | Shop at ECS Tuning | |||
| TETE DE SOUPAPE EPAISSEUR: +0,4MM | ||||||||||
| 02 | Soupape d'admission cote repar. +0,2mm | 33,0/7,17MM | 8 | 11341730655 | $111.04 | arrêté | Shop at ECS Tuning | |||
| TETE DE SOUPAPE EPAISSEUR: +0,2MM | ||||||||||
| 02 | Soupape d'admission | 8 | 11341726262 | arrêté | Shop at ECS Tuning | |||||
| 03 | Soupape d'échappement | 30,5/6,96MM | 8 | 02/1991 | 11341727151 | $68.92 | Shop at ECS Tuning | |||
| TETE DE SOUPAPE EPAISSEUR: +0,4MM | ||||||||||
| 03 | Soupape d'échappement côte répar.+0,2mm | 30,5/7,16MM | 8 | 02/1991 | 11341727155 | $81.47 | arrêté | Shop at ECS Tuning | ||
| TETE DE SOUPAPE EPAISSEUR: +0,2MM | ||||||||||
| 03 | Soupape d'échappement côte répar. +0,1mm | 30,5/7,06MM | 8 | 02/1991 | 11341727152 | $81.47 | arrêté | Shop at ECS Tuning | ||
| 03 | Soupape d'échappement | 30,5/6,96MM | 8 | 02/1991 | 11341727910 | $67.24 | arrêté | Shop at ECS Tuning | ||
| 04 | Jeu de reparation joint de soupape | 2 | 11349059171 | $35.29 | Shop at ECS Tuning | |||||
| 05 | Cuvette de ressort | X | 11341726969 | $3.77 | Shop at ECS Tuning | |||||
| 06 | Cuvette de ressort | X | 11341722544 | $3.77 | Shop at ECS Tuning | |||||
| 07 | Ressort de soupape | D=30,0MM | X | 11341727768 | $7.88 | Shop at ECS Tuning | ||||
| 08 | Ressort de soupape | D=20,9MM | X | 11341727769 | $7.88 | Shop at ECS Tuning | ||||
| 09 | Plateau de ressort superieur | X | 11341722822 | $3.77 | Shop at ECS Tuning | |||||
| 10 | Demi segment d'arret | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 11 | Poussoir hydraulique | X | 11321734341 | $32.50 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
