Pompe a vide avec tuyau for BMW 5 Series E34 525td

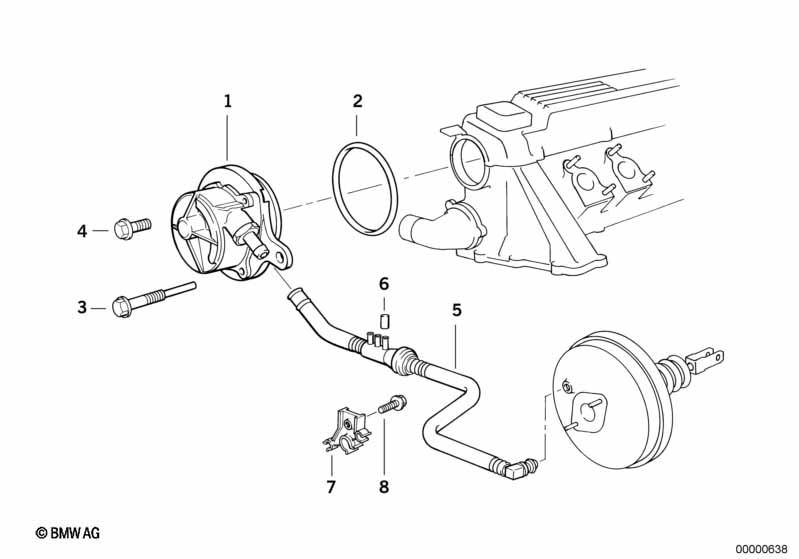

This Pompe a vide avec tuyau technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CONDUITE DE DEPRESSION VOIR GROUPE PRINCIPAL 34 |
|||||||||
| 01 | Pompe a vide | 1 | 01/1996 | 11662247490 | $503.68 | Shop at ECS Tuning | ||||
| 01 | Pompe a vide | 1 | 01/1996 | 11662249939 | $413.98 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Joint torique | 61X3,5 | 1 | 11667794767 | $6.02 | Shop at ECS Tuning | ||||
| 03 | Vis six pans | 1 | 11662243307 | Shop at ECS Tuning | ||||||
| 04 | Vis six pans avec rondelle | M8X26-10.9-ZNS3 | 1 | 07119904092 | Shop at ECS Tuning | |||||
| 05 | Conduite de depression | 1 | 09/1993 | 34331162032 | Shop at ECS Tuning | |||||
| 05 | Conduite de depression | 1 | 09/1993 | 34331162350 | $74.85 | arrêté | Shop at ECS Tuning | |||
| 06 | Capuchon | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 07 | Support de tuyau | 1 | 11612243626 | Shop at ECS Tuning | ||||||
| 08 | Vis six pans avec rondelle | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
