Boîtier de commande de carburateur for BMW 3 Series E30 316 (1985)

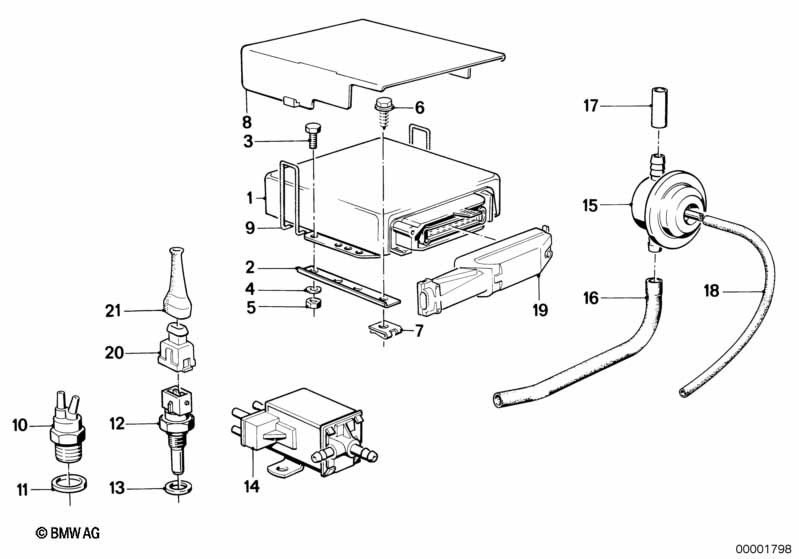

This Boîtier de commande de carburateur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boîtier de commande de carburateur | 2BE | 1 | 09/1983 | 13611710680 | $1227.60 | arrêté | Shop at ECS Tuning | ||
| 03 | Vis six pans | M6X12-8.8-ZNNIV | X | 09/1983 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 04 | Rondelle élastique noire | B6-ZN | X | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 04 | Plaque d'appui | 5.3-140 HV-ZNS | X | 09/1983 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 04 | Rondelle elastique | B6-ZNS3 | X | 09/1983 | 07119904496 | $1.78 | arrêté | Shop at ECS Tuning | ||
| 05 | Ecrou à six pans | M6-8-ZNNIV SI | X | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 06 | Vis à tôle à six pans | ST6,3X22-C-Z1 | 4 | 09/1983 | 07119916969 | $0.29 | arrêté | Shop at ECS Tuning | ||
| 07 | C-clip ecrou | M6-ZNS3 | 4 | 09/1983 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
| 10 | Thermovalve | 1 | 09/1983 | 11741288374 | $36.55 | Shop at ECS Tuning | ||||
| 11 | Anneau d'étanchéité | A14X18-AL | 1 | 09/1983 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 12 | Sonde de température eau | 1 | 09/1983 | 13621709967 | Shop at ECS Tuning | |||||
| 13 | Anneau d'étanchéité | A12X15,5 AL | 1 | 09/1983 | 07119963130 | $0.09 | Shop at ECS Tuning | |||
| 14 | Soupape electrique | 1 | 09/1983 | 11741277973 | $87.56 | Shop at ECS Tuning | ||||
| 15 | Clapet d'air | 1 | 09/1983 | 13111287360 | $73.38 | Shop at ECS Tuning | ||||
| 16 | Tuyau | 1 | 09/1983 | 13111288296 | $6.84 | arrêté | Shop at ECS Tuning | |||
| 17 | Tuyau | 1 | 09/1983 | 13111709093 | arrêté | Shop at ECS Tuning | ||||
| 18 | Tuyau de depression noir | 3,5X1,8 | X | 09/1983 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 19 | Boîtier de connecteur | 35POL. - 2BE | 1 | 09/1983 | 12511288499 | arrêté | Shop at ECS Tuning | |||
| 20 | Boîtier de connecteur | 2 POL. | 1 | 09/1983 | 12521706091 | $4.02 | Shop at ECS Tuning | |||
| 21 | Capuchon de protection | L=12,5MM | 1 | 09/1983 | 61131358330 | $5.33 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
