Radiateur/cadre for BMW 5 Series E39 525tds (1996)

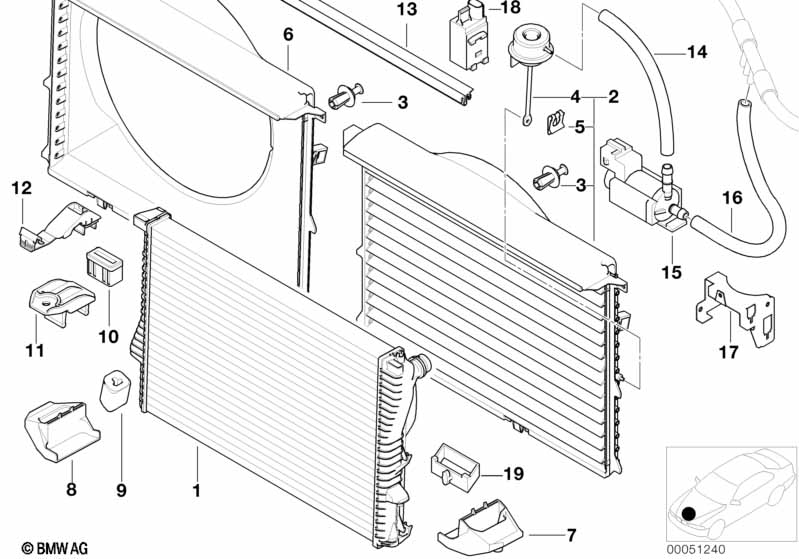

This Radiateur/cadre technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiateur du liquide de refroidissement | A=650MM | 1 | 17112246012 | $433.95 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Anneau d'étanchéité | A14X20-CUSN | 1 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| -- | Vis bouchon | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| Pour véhicules avec Climatiseur automatique |
S534A=Oui |
|||||||||
| 01 | Radiateur du liquide de refroidissement | A=650MM | 1 | 17112246012 | $433.95 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Interrupteur thermique double | 91/99CEL | 1 | 61318363677 | $32.46 | Shop at ECS Tuning | ||||
| -- | Anneau d'étanchéité | A14X20-CUSN | 1 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 02 | Persienne | 1 | 09/1997 | 17312246015 | $389.10 | Shop at ECS Tuning | ||||
| 03 | Rivet | 3 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Capsule de depression | 1 | 17327785060 | Shop at ECS Tuning | ||||||
| 05 | Agrafe | A5 | 1 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Support gauche | 1 | 17111737706 | $9.62 | Shop at ECS Tuning | |||||
| 08 | Appui droit | 1 | 17111737707 | $9.62 | Shop at ECS Tuning | |||||
| 09 | Silentbloc | 2 | 17112246750 | $14.84 | Shop at ECS Tuning | |||||
| 09 | Silentbloc | 2 | 03/1997 | 17111737704 | $5.83 | Shop at ECS Tuning | ||||
| 10 | Silentbloc | 2 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 11 | Support supérieur | 2 | 17111740315 | $1.18 | Shop at ECS Tuning | |||||
| 13 | Moulure en caoutchouc | L=621MM | 1 | 17111737713 | $3.92 | Shop at ECS Tuning | ||||
| 14 | Tuyau de depression blanc | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 15 | Soupape electrique | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 16 | Tuyau de depression noir | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 17 | Support de clapet de regulation | AGR | 1 | 12522246176 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Climatiseur automatique |
S534A=Oui |
|||||||||
| 18 | Capteur auc | 1 | 64116917001 | $78.45 | Shop at ECS Tuning | |||||
| 19 | Support p cadre ventilateur | 2 | 17111440193 | $5.82 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
