Palier intermediaire arbre transmission for BMW 2.5CS-3.0CSL 3.0CSi (1973)

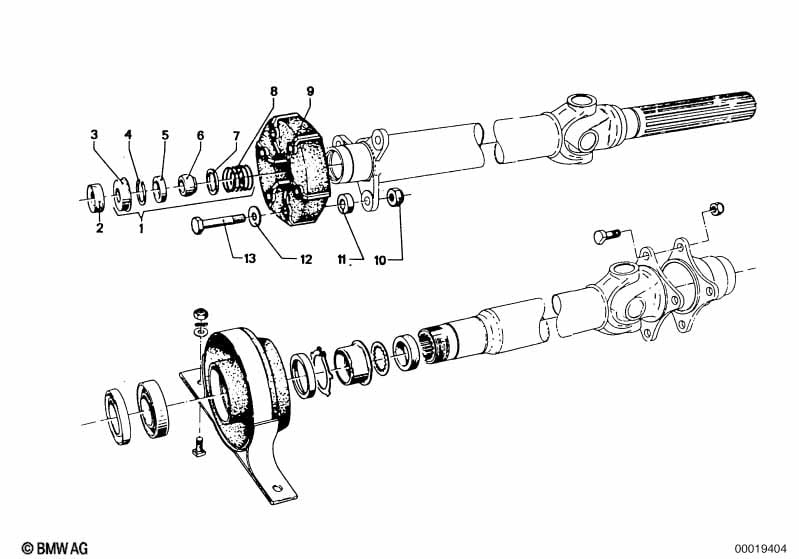

This Palier intermediaire arbre transmission technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu d.repara.centrage | 1 | 12/1968 | 11/1975 | 26111204115 | arrêté | Shop at ECS Tuning | |||
| 02 | Tampon | 1 | 12/1968 | 11/1975 | 26111100891 | $7.81 | Shop at ECS Tuning | |||
| 03 | Cache | 1 | 12/1968 | 11/1975 | 26113648115 | arrêté | Shop at ECS Tuning | |||
| 04 | Bague de securité | 28X1,2 DIN472 | 1 | 12/1968 | 11/1975 | 33307745110 | $0.51 | Shop at ECS Tuning | ||
| 05 | Coussinet spherique | 1 | 12/1968 | 11/1975 | 26111100391 | $6.85 | arrêté | Shop at ECS Tuning | ||
| 06 | Douille d.guidage | 1 | 12/1968 | 11/1975 | 26111100389 | $6.27 | arrêté | Shop at ECS Tuning | ||
| 07 | Plaque d'appui | 17 | 1 | 12/1968 | 11/1975 | 07119931687 | $0.13 | Shop at ECS Tuning | ||
| 08 | Ressort de pression | 1 | 12/1968 | 11/1975 | 26113648104 | $6.95 | arrêté | Shop at ECS Tuning | ||
| 09 | Flector | D=96MM/12 | 1 | 04/1971 | 11/1975 | 26111107832 | $107.93 | Shop at ECS Tuning | ||
| 10 | Ecrou à six pans autobloquant | M12X1,5-10-PHR | 6 | 04/1971 | 11/1975 | 07129900047 | $0.62 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
