Passage de roue avant for BMW 3 Series E46 M3 (2002)

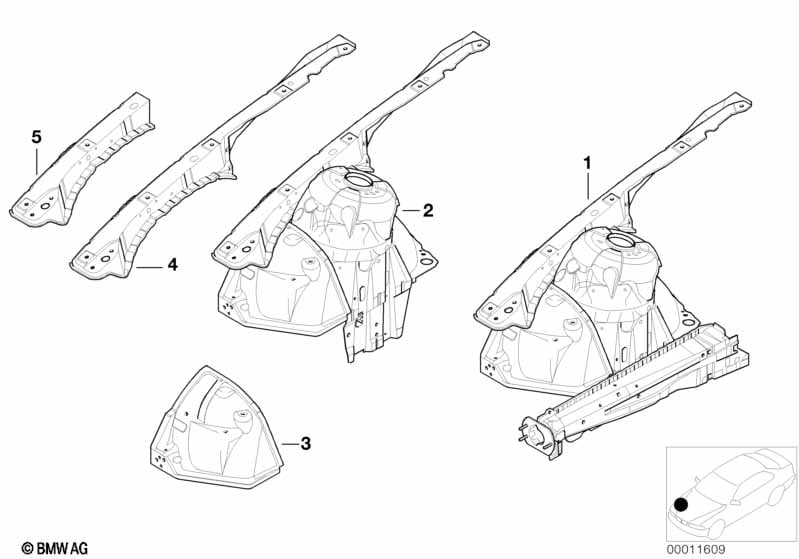

This Passage de roue avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Système 4-roues motrices |
S203A=Non |
|||||||||
| 01 | Passage de roue avant gauche | BASIS | 1 | 41148234035 | $710.86 | Shop at ECS Tuning | ||||
| Si nécessaire,avec Renfort palier-support pour Moteur M57 SA815 = paquet routes en mauvais état |
||||||||||
| 01 | Passage de roue avant droit | BASIS | 1 | 41148234036 | $710.86 | Shop at ECS Tuning | ||||
| Si nécessaire,avec Renfort palier-support pour Moteur M57 SA815 = paquet routes en mauvais état |
||||||||||
| 02 | Section du passage de roue avant gauche | BASIS | 1 | 41148234037 | $479.83 | Shop at ECS Tuning | ||||
| Si nécessaire,avec Renfort palier-support pour Moteur M57 SA203 = commande de toutes roues SA815 = paquet routes en mauvais état |
||||||||||
| 02 | Section du passage de roue avant droite | BASIS | 1 | 41148234038 | $479.83 | Shop at ECS Tuning | ||||
| Si nécessaire,avec Renfort palier-support pour Moteur M57 SA203 = commande de toutes roues SA815 = paquet routes en mauvais état |
||||||||||
| 03 | Section du passage de roue avant gauche | BASIS | 1 | 41148238047 | $149.29 | Shop at ECS Tuning | ||||
| Nécessaire pour la réparation | ||||||||||
| 03 | Section du passage de roue avant droite | BASIS | 1 | 41148238048 | $149.29 | Shop at ECS Tuning | ||||
| Nécessaire pour la réparation | ||||||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 04 | Support de passage de roue avant gauche | 1 | 41118234043 | $53.05 | Shop at ECS Tuning | |||||
| 04 | Support de passage de roue avant droit | 1 | 41118234044 | $53.05 | Shop at ECS Tuning | |||||
| 05 | Section du support gauche | 1 | 41118237611 | $41.60 | Shop at ECS Tuning | |||||
| 05 | Section du support droite | 1 | 41118237612 | $41.60 | Shop at ECS Tuning | |||||
