Isolation thermique for BMW 3 Series E36 323ti (1998)

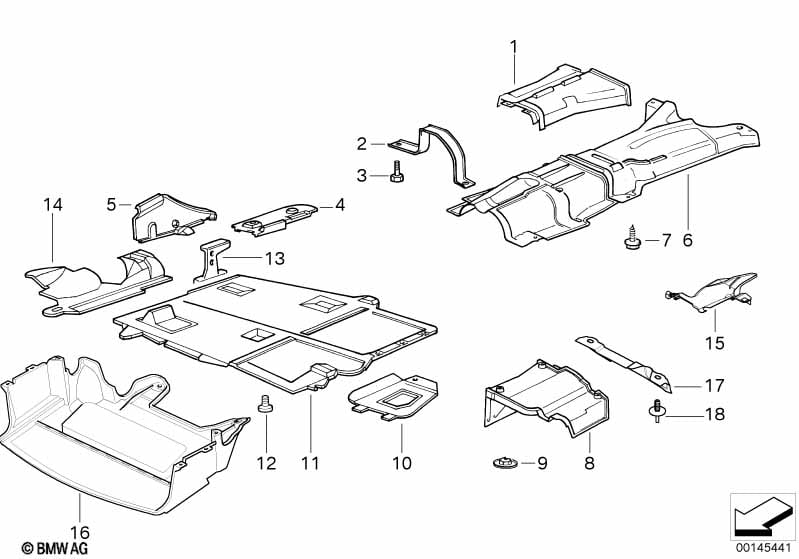

This Isolation thermique technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Isolation thermique | 1 | 51488146018 | $47.35 | Shop at ECS Tuning | |||||
| 02 | Support de fixation | 1 | 51488146166 | $5.60 | Shop at ECS Tuning | |||||
| 03 | Vis six pans avec rondelle | M6X16-Z3-2 | X | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Isolation thermique droite | 1 | 51488196170 | $55.21 | Shop at ECS Tuning | |||||
| 05 | Tôle pare-chaleur support moteur | 1 | 09/1994 | 51488173388 | $14.33 | arrêté | Shop at ECS Tuning | |||
| 06 | Tôle pare-chaleur de tunnel | 1 | 51488146551 | $58.44 | Shop at ECS Tuning | |||||
| 07 | Vis à tôle à six pans | ST6,3X13-C-Z2-Z | X | 07119901359 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Isolation silencieux secondaire | 1 | 51488146170 | $112.56 | Shop at ECS Tuning | |||||
| Pour véhicules avec Dispositif d'attelage |
=Oui |
|||||||||
| 08 | Tôle pare-chaleur | 1 | 18221739990 | $31.63 | SI 180195977 | Shop at ECS Tuning | ||||
| 09 | Ecrou tôlé | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Protection de compartiment moteur | 1 | 51718236995 | $136.47 | Shop at ECS Tuning | |||||
| 17 | Tôle pare-chaleur | 1 | 51128246891 | Shop at ECS Tuning | ||||||
| 18 | Rivet expansible noir | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
