Ripiano posteriore for BMW 3 Series E46 320td (2003)

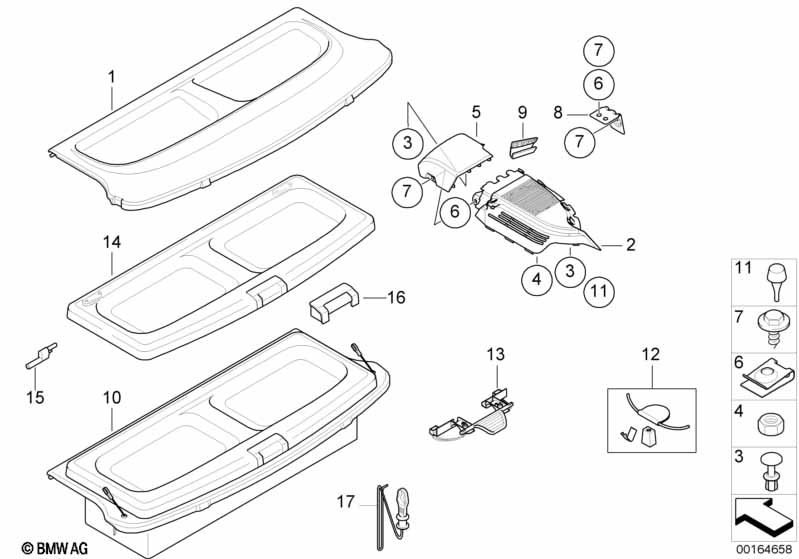

This Ripiano posteriore technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con beige chiaro 2 |
HC=Sì |
|||||||||
| 01 | Ripiano posteriore | HELLBEIGE 2 | 1 | 51467054996 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| Per veicoli con grigio |
TT=Sì |
|||||||||
| 01 | Ripiano posteriore | GRAU | 1 | 51467054997 | +rest. | Shop at ECS Tuning | ||||
| Per veicoli con antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau |
AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì |
|||||||||
| 01 | Ripiano posteriore | ANTHRAZIT | 1 | 51467054998 | +rest. | Shop at ECS Tuning | ||||
| Per veicoli con beige chiaro 2 |
HC=Sì |
|||||||||
| 02 | Supporto ripiano posteriore sinistra | HELLBEIGE 2 | 1 | 51467007903 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| 02 | Supporto ripiano posteriore destra | HELLBEIGE 2 | 1 | 51467007904 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| Per veicoli con grigio |
TT=Sì |
|||||||||
| 02 | Supporto ripiano posteriore sinistra | GRAU | 1 | 51467007901 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Supporto ripiano posteriore destra | GRAU | 1 | 51467007902 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau |
AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì |
|||||||||
| 02 | Supporto ripiano posteriore sinistra | ANTHRAZIT | 1 | 51467002135 | Shop at ECS Tuning | |||||
| 02 | Supporto ripiano posteriore destra | ANTHRAZIT | 1 | 51467002136 | Shop at ECS Tuning | |||||
| 03 | Ribadino ad espansione | SCHWARZ | 4 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Dado esagonale | 10 | 51467027257 | $0.47 | Shop at ECS Tuning | |||||
| Per veicoli con beige chiaro 2 |
HC=Sì |
|||||||||
| 05 | Mascherina, guida cintura sinistra | HELLBEIGE 2 | 1 | 51467007899 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Mascherina, guida cintura destra | HELLBEIGE 2 | 1 | 51467007900 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con grigio |
TT=Sì |
|||||||||
| 05 | Mascherina, guida cintura sinistra | GRAU | 1 | 51467007897 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Mascherina, guida cintura destra | GRAU | 1 | 51467007898 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau |
AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì |
|||||||||
| 05 | Mascherina, guida cintura sinistra | ANTHRAZIT | 1 | 51467006011 | Shop at ECS Tuning | |||||
| 05 | Mascherina, guida cintura destra | ANTHRAZIT | 1 | 51467006012 | Shop at ECS Tuning | |||||
| 06 | Dado per lamiera | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Vite esagonale per lamiera | ST4,8X19-C-Z2 | 2 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Supporto | 2 | 51467023955 | TERMINATO | Shop at ECS Tuning | |||||
| Per veicoli con beige chiaro 2 |
HC=Sì |
|||||||||
| 09 | Schermo, uscita cinghia, sinistra | HELLBEIGE | 1 | 51467033223 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Schermo, uscita cinghia, destra | HELLBEIGE | 1 | 51467033224 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con grigio |
TT=Sì |
|||||||||
| 09 | Schermo, uscita cinghia, sinistra | GRAU | 1 | 51467033221 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Schermo, uscita cinghia, destra | GRAU | 1 | 51467033222 | TERMINATO | Shop at ECS Tuning | ||||
| Per veicoli con antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau |
AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì |
|||||||||
| 09 | Schermo, uscita cinghia, sinistra | SCHWARZ | 1 | 51467015883 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Schermo, uscita cinghia, destra | SCHWARZ | 1 | 51467015884 | Shop at ECS Tuning | |||||
| Per veicoli con Pacchetto portaoggetti e beige chiaro 2 |
S493A=Sì HC=Sì |
|||||||||
| 10 | Ripiano posteriore | BEIGE | 1 | 51467075827 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| Per veicoli con Pacchetto portaoggetti e antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau o grigio |
S493A=Sì AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì TT=Sì |
|||||||||
| 10 | Ripiano posteriore | ANTHRAZIT | 1 | 51467075826 | +rest. | Shop at ECS Tuning | ||||
| Per veicoli con Pacchetto portaoggetti |
S493A=Sì |
|||||||||
| 11 | Tampone | 2 | 51467075828 | Shop at ECS Tuning | ||||||
| 12 | Kit riparazione linguetta di trazione | 2 | 51467134185 | Shop at ECS Tuning | ||||||
| 13 | Portaombrelli | 1 | 51467130847 | Shop at ECS Tuning | ||||||
| Per veicoli con Pacchetto portaoggetti e beige chiaro 2 |
S493A=Sì HC=Sì |
|||||||||
| 14 | Coperchio | BEIGE | 1 | 51467134188 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| Per veicoli con Pacchetto portaoggetti e antracite o poetic-blue o blu o arancione o pistazie o peach o Rosso o lavanda dunkel o nero o tanin-rot o topas-blau o grigio |
S493A=Sì AT=Sì AU=Sì BL=Sì OG=Sì PI=Sì PP=Sì RE=Sì SE=Sì SW=Sì TD=Sì TO=Sì TT=Sì |
|||||||||
| 14 | Coperchio | ANTHRAZIT | 1 | 51467134187 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| 15 | Supporto sin. | 1 | 51468146707 | $2.33 | Shop at ECS Tuning | |||||
| 15 | Supporto dest. | 1 | 51468146708 | $2.33 | Shop at ECS Tuning | |||||
| Per veicoli con Pacchetto portaoggetti |
S493A=Sì |
|||||||||
| 16 | Impugnatura | 1 | 51467134186 | Shop at ECS Tuning | ||||||
| 17 | Cordoncino | 2 | 51467166974 | Shop at ECS Tuning | ||||||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
