Pompa wody ukł. chłodn./termostat for BMW 3 Series E46 320d (1999)

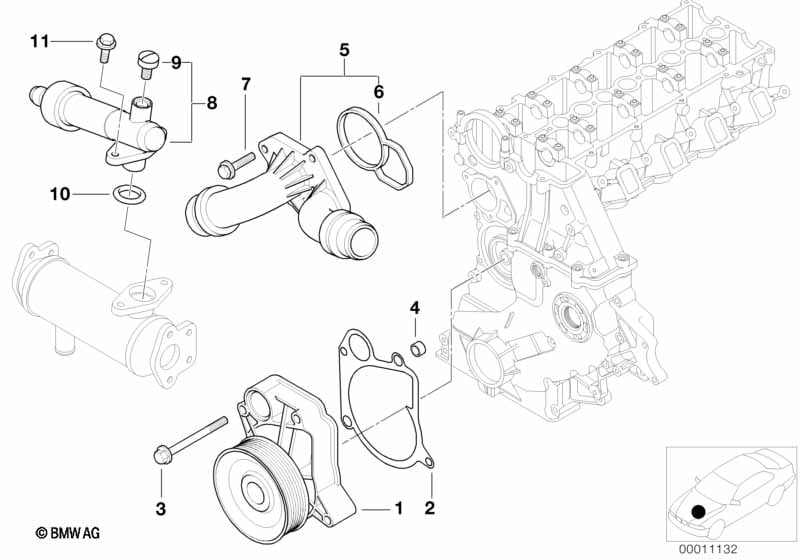

This Pompa wody ukł. chłodn./termostat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Automatyczna skrzynia biegów |
S205A=Nie |
|||||||||
| 01 | Pompa płynu chłodzącego mechaniczna | 1 | 11510393731 | Shop at ECS Tuning | ||||||
| Dla samochodów z Automatyczna skrzynia biegów |
S205A=Tak |
|||||||||
| 01 | Pompa płynu chłodzącego mechaniczna | 1 | 11510393730 | Shop at ECS Tuning | ||||||
| 02 | Uszczelka metalowa | 1 | 11512247196 | Shop at ECS Tuning | ||||||
| 03 | Śruba z łbem kołnierzowym | M7 X 71 | 4 | 11142247097 | Shop at ECS Tuning | |||||
| 04 | Tulejka pasowana | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Termostat z króćcem przyłączeniowym | 1 | 11532247019 | $62.18 | Shop at ECS Tuning | |||||
| 06 | Uszczelka | 1 | 11532247022 | Shop at ECS Tuning | ||||||
| 07 | Śruba z podkładką | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Termostat chłodzenia EGR | 1 | 11712247723 | Shop at ECS Tuning | ||||||
| 09 | Śruba odpowietrznika | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 09 | Śruba odpowietrznika | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 10 | O-Ring | 19,0X2,5MM | 1 | 11532248435 | Shop at ECS Tuning | |||||
| 11 | Śruba z podkładką | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
