Sonda lambda/Elementy dod. for BMW 3 Series E46 318i

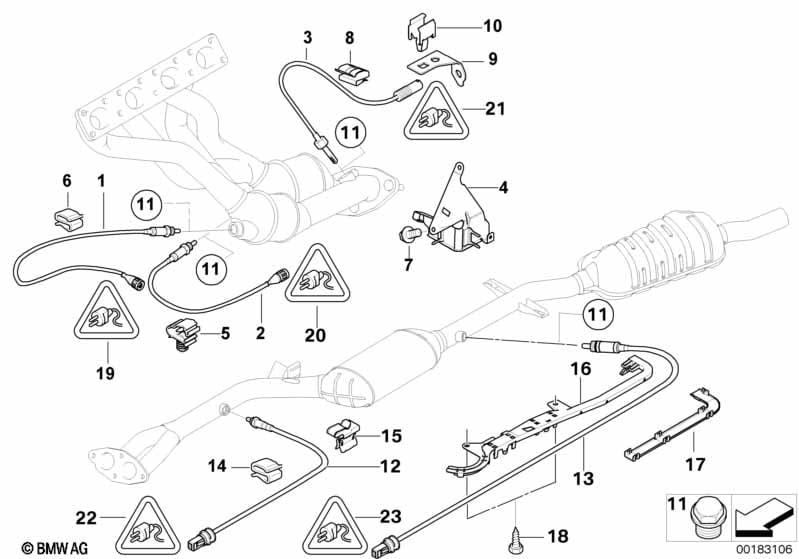

This Sonda lambda/Elementy dod. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512975 | $215.65 | Shop at ECS Tuning | ||||
| 02 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512976 | Shop at ECS Tuning | |||||
| 03 | Sonda monitor. lambda | L=450MM | 1 | 11787506539 | $215.65 | Shop at ECS Tuning | ||||
| 04 | Uchwyt przewodu sondy lambda | 1 | 11787506540 | Shop at ECS Tuning | ||||||
| 05 | Uchwyt przewodu | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 07 | Śruba z podkładką | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Zaczep | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Uchwyt przewodu sondy lambda | 1 | 23131282524 | $6.77 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Uchwyt połączenia wtykowego | 1 | 07149157161 | $1.31 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja na benzynę ołowiową zamontowany ponad tolerancję konstruk. |
S199A=Tak |
|||||||||
| 11 | Śruba z pierścieniem uszcz. | M18X1,5 | 3 | 10/2001 | 11621437517 | $11.43 | Shop at ECS Tuning | |||
| Dla samochodów z Redukcja spalin EU 2 lub Redukcja spalin EU 3 |
S168A=Tak S169A=Tak |
|||||||||
| 12 | Sonda lambda, regulacyjna | L=360MM | 1 | 11787512975 | $215.65 | Shop at ECS Tuning | ||||
| 13 | Sonda monitor. lambda | L=765MM | 1 | 11787506531 | Shop at ECS Tuning | |||||
| Dla samochodów z Redukcja spalin EU 2 i Automatyczna skrzynia biegów i Redukcja spalin EU 3 |
S168A=Tak S205A=Tak S169A=Nie |
|||||||||
| 15 | Zatrzask kablowy | 1 | 11787516866 | $8.60 | Shop at ECS Tuning | |||||
| Dla samochodów z Redukcja spalin EU 2 i Automatyczna skrzynia biegów i Redukcja spalin EU 3 |
S168A=Nie S205A=Tak S169A=Tak |
|||||||||
| 15 | Zatrzask kablowy | 1 | 11787516866 | $8.60 | Shop at ECS Tuning | |||||
| 16 | Prowadzenie przewodu | 1 | 11781716380 | +podst | Shop at ECS Tuning | |||||
| 17 | Prowadzenie przewodu | 1 | 11781716343 | +podst | Shop at ECS Tuning | |||||

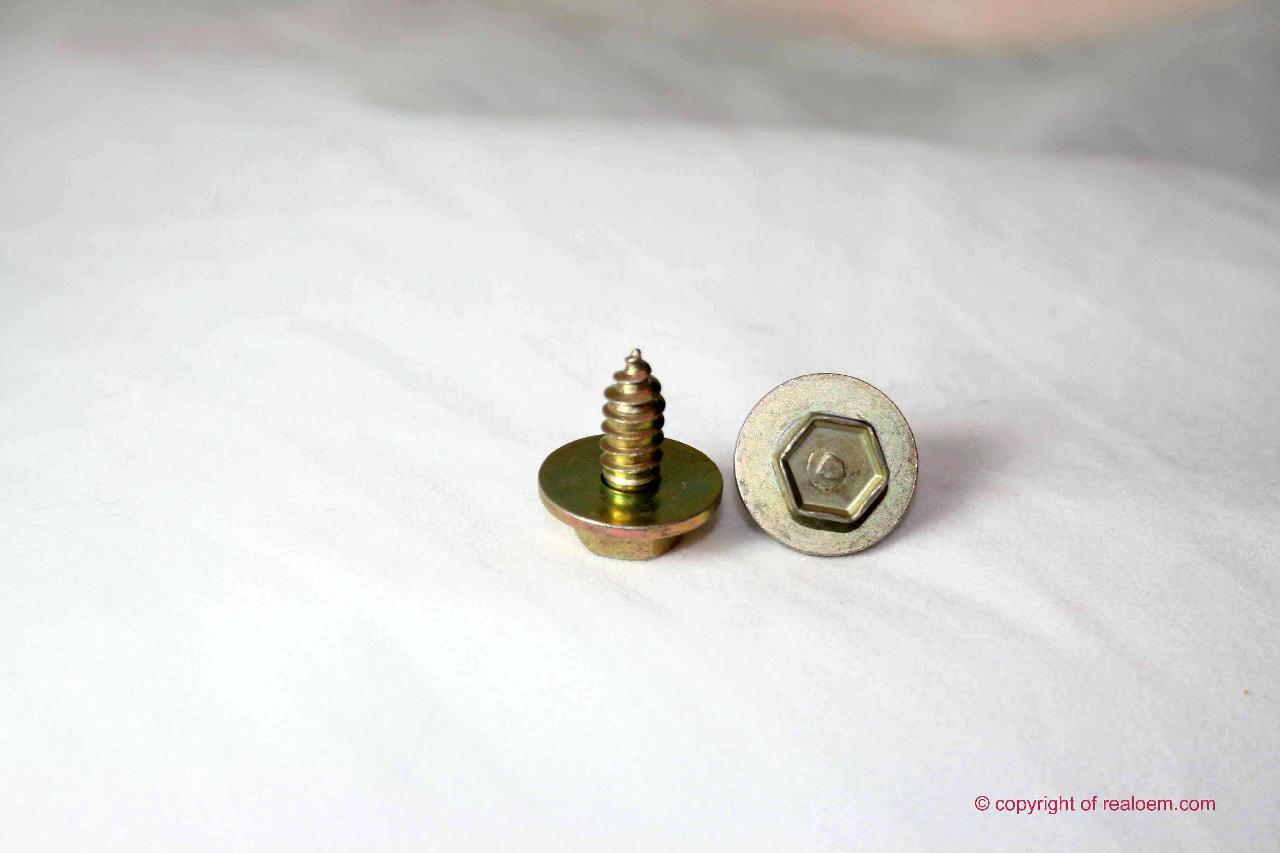

| 18 | Blachowkręt | ST6,3X16-C-Z2-Z | 2 | 07119916966 | $0.27 | Zakończono | Shop at ECS Tuning | |||
| 19 | Uniwersalna obudowa gniazda | 6 POL. | 1 | 12527505225 | $2.53 | Shop at ECS Tuning | ||||
| 22 | Uniwersalna obudowa gniazda | 6 POL. | 1 | 12527505225 | $2.53 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
