Czuj. przeciwpył. f. paliw./Elem. dod. for BMW 5 Series E61 LCI 520d (2008)

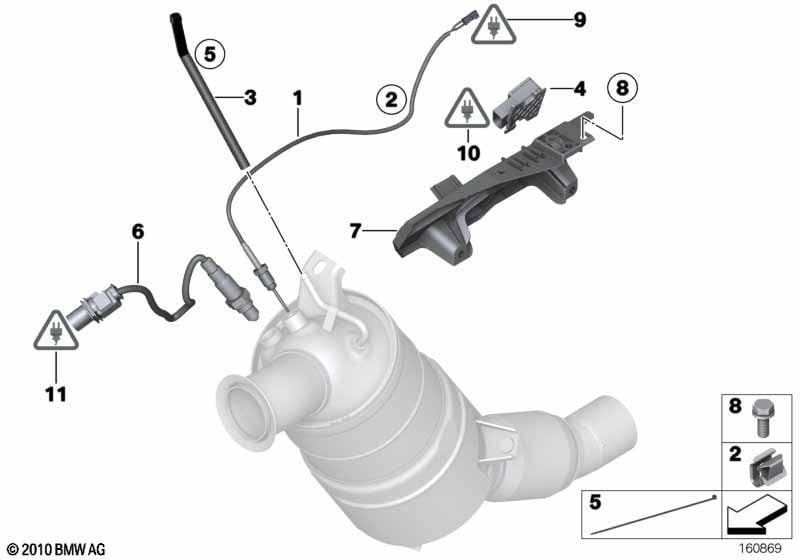

This Czuj. przeciwpył. f. paliw./Elem. dod. technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Czujnik temperatury spalin | 1 | 09/2008 | 13627806254 | Shop at ECS Tuning | |||||
| 02 | Zaczep | 1 | 09/2008 | 12521437136 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Przewód ochronny | 1 | 09/2008 | 13627804370 | Shop at ECS Tuning | |||||
| 04 | Czujnik ciśnienia spalin | 1 | 09/2008 | 13627805152 | Shop at ECS Tuning | |||||
| 05 | Opaska kablowa | 1 | 09/2008 | 12511742867 | $2.73 | Shop at ECS Tuning | ||||
| 06 | Sonda lambda | L=420MM | 1 | 09/2008 | 13627804369 | Shop at ECS Tuning | ||||
| 07 | Uchwyt czujnika | 1 | 09/2008 | 13627797518 | +podst | Shop at ECS Tuning | ||||
| 08 | Śruba z podkładką | M6X16-U1-8.8 | 3 | 09/2008 | 07119904524 | $0.25 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 520d Czuj. przeciwpył. f. paliw./Elem. dod.?
- This technical diagram illustrates the Czuj. przeciwpył. f. paliw./Elem. dod. within the Układ wydechowy group for the 5 Series E61 LCI 520d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Czujnik temperatury spalin (Part #13627806254).
- Which models use the hardware listed in this Czuj. przeciwpył. f. paliw./Elem. dod.?
- The hardware and components featured in the Czuj. przeciwpył. f. paliw./Elem. dod. are specific to the 5 Series E61 LCI 520d produced during 2008. These technical specifications ensure that parts like the Czujnik temperatury spalin (13627806254) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Czuj. przeciwpył. f. paliw./Elem. dod. assembly?
- Each item in the Czuj. przeciwpył. f. paliw./Elem. dod. corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 520d, you can identify the Czujnik temperatury spalin by locating its position on the schematic, which then links to the official BMW part number 13627806254 for the Układ wydechowy section.
