Kier. wielofunk. z pod. pow. Smart for BMW 5 Series E60 530i (2004)

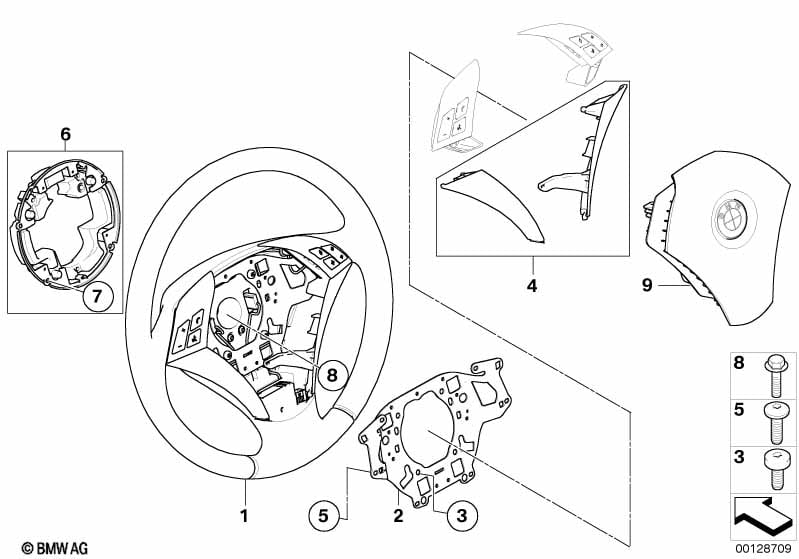

This Kier. wielofunk. z pod. pow. Smart technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kierownica skórzana z pod.pow. | SCHWARZ | 1 | 09/2005 | 32346763359 | $472.16 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Podgrzewanie kierownicy |
S248A=Tak |
|||||||||
| 01 | Kierownica skórzana z pod.pow. | SCHWARZ | 1 | 09/2005 | 32346763360 | $526.00 | Zakończono | Shop at ECS Tuning | ||
| 02 | Płyta mocująca kierownicę ze śrubami | 1 | 09/2005 | 32346763361 | $22.99 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba torx | M5X12,5MM | 4 | 09/2005 | 32346766011 | $0.80 | Shop at ECS Tuning | |||
| 03 | Śruba torx | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Kpl. klamer dekoracyjnych | SCHWARZ | 1 | 32306763452 | $54.92 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba torx | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Śruba torx | 6 | 32346763366 | $1.34 | Shop at ECS Tuning | |||||
| 08 | Śruba sześciokątna | M12 | 1 | 32311159951 | $3.42 | Shop at ECS Tuning | ||||
| 09 | Poduszka powietrzna kierowcy | 1 | 09/2005 | 32346776425 | $850.79 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
