Wspomaganie siły hamowania, podciśn. for BMW 5 Series E60 535d (2005)

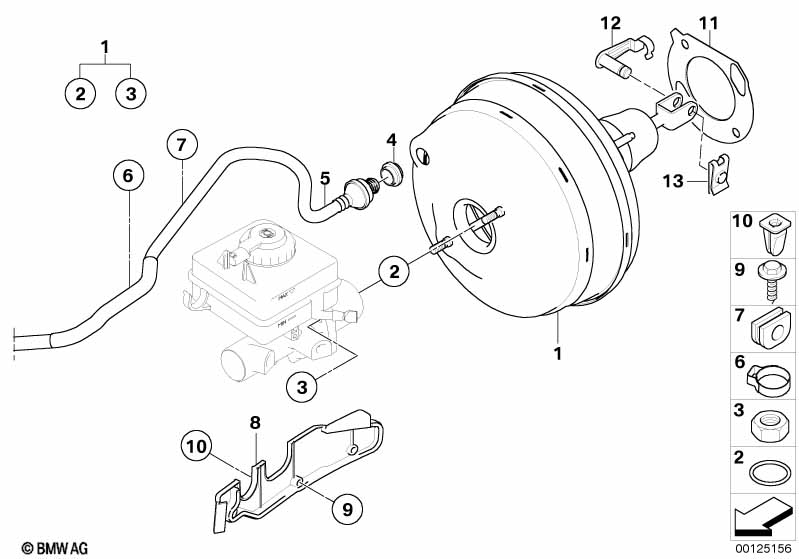

This Wspomaganie siły hamowania, podciśn. technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Przewód podciśnieniowy patrz grupa główna 11 |
|||||||||
| 01 | Serwomechanizm ukł. hamulcowego | 1 | 34336779742 | $588.00 | +podst | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Uszczelka serwomechanizmu | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| -- | Nakrętka samozabezp. z kołnierzem | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | O-ring pompy hamulcowej | 1 | 34311159007 | $3.15 | Shop at ECS Tuning | |||||
| 03 | Nakrętka samozabezpieczająca | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Pierścień uszczelniający | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 05 | Przewód kształtowany | 1 | 34337809847 | Shop at ECS Tuning | ||||||
| 06 | Opaska na węże | 21,3MM | 1 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Uszczelnienie ścianki dział. | 1 | 34306760911 | $5.02 | Shop at ECS Tuning | |||||
| 09 | Wkręt do blachy z podkładką | ST 4,8X19 | 3 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
| 10 | Nakrętka | ST 4.8 WEISS | 3 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Uszczelka serwomechanizmu | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 12 | Sworzeń zabezpieczający | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 13 | Bezpiecznik | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
