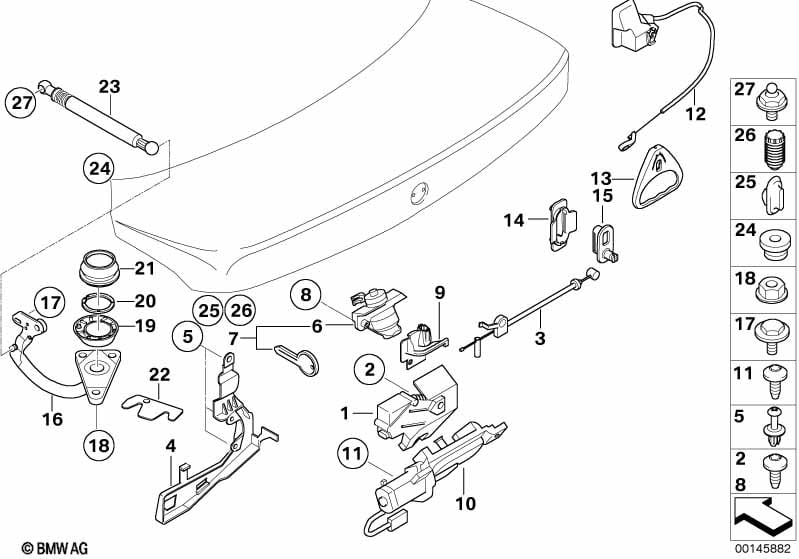

Tylna klapa/System zamykania for BMW 7 Series E65 745i (2003)
This Tylna klapa/System zamykania technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zamek tylnej klapy | 1 | 51247197081 | $82.90 | Shop at ECS Tuning | |||||

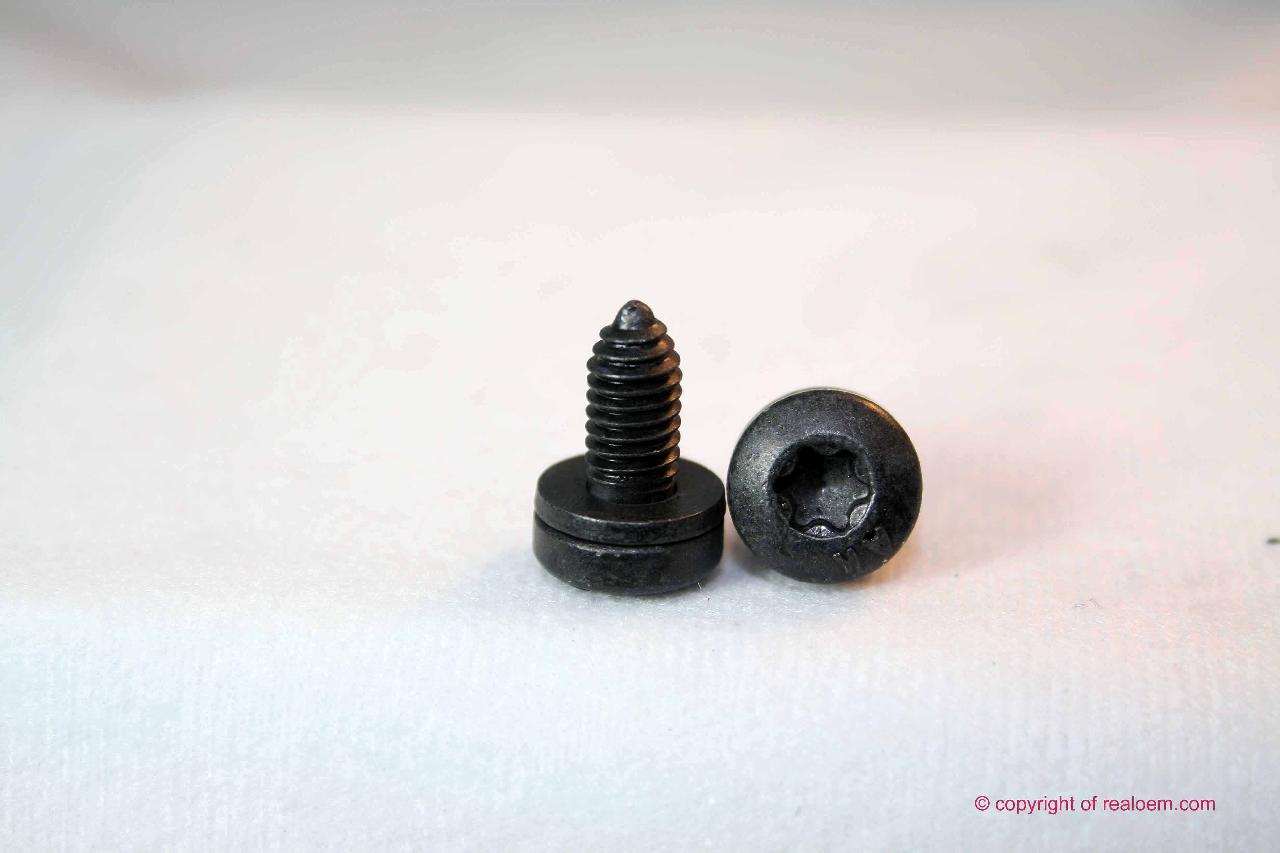

| 02 | Śruba Torx z podkładką | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Cięgno pokrywy bagażnika | 1 | 03/2005 | 51247014871 | $16.22 | Shop at ECS Tuning | ||||
| 04 | Uchwyt cięgna | 1 | 51247010977 | $2.50 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Nit rozprężny | 3 | 51488353567 | $0.63 | Shop at ECS Tuning | |||||
| 06 | Zamek kodowany | 1 | 03/2005 | 51247061934 | $151.95 | Shop at ECS Tuning | ||||
| 07 | Zamek z kluczem | 1 | 03/2005 | 51247061935 | $168.57 | Zakończono | Shop at ECS Tuning | |||
| 08 | Śruba Torx z podkładką | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Klamra | 1 | 51247037714 | $9.60 | Shop at ECS Tuning | |||||
| 10 | Napęd siłownika zamka pokrywy bagażn. | 1 | 67107014872 | $176.55 | Shop at ECS Tuning | |||||
| 11 | Śruba Torx z podkładką | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Cięgno odryglowania awaryjnego | 1 | 03/2005 | 51247056412 | $18.07 | Shop at ECS Tuning | ||||
| 13 | Uchwyt odryglowania awaryjnego | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 14 | Zaczep | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 15 | Podkładka | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 16 | Zawias pokrywy bagażnika, lewy | 1 | 09/2007 | 41627175307 | $100.82 | Zakończono | Shop at ECS Tuning | |||
| 16 | Zawias pokrywy bagażnika, prawy | 1 | 09/2007 | 41627175308 | $100.82 | Shop at ECS Tuning | ||||
| 16 | Zawias pokrywy bagażnika, lewy | 1 | 41627175307 | $100.82 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Zawias pokrywy bagażnika, prawy | 1 | 41627175308 | $100.82 | Shop at ECS Tuning | |||||
| 17 | Śruba z podkładką | ISA M8X18 | 4 | 07147111389 | $1.05 | Shop at ECS Tuning | ||||
| 18 | Nakrętka z podkładką | M8 | 6 | 07/2008 | 07146959644 | Zakończono | Shop at ECS Tuning | |||
| 18 | Nakrętka sześciokątna z płytką | M8 | 6 | 07149302543 | Shop at ECS Tuning | |||||
| 18 | Nakrętka kołpakowa z podkładką | M8 | 6 | 41627062753 | $2.30 | Shop at ECS Tuning | ||||
| 19 | Uszczelka zawiasu pokrywy bagażnika | 2 | 51247054178 | $6.56 | Shop at ECS Tuning | |||||
| 20 | Pierścień zaciskowy | 2 | 51247023110 | $3.81 | Shop at ECS Tuning | |||||
| 21 | Uszczelka zawiasu pokrywy bagażnika | 2 | 41627023109 | $4.87 | Shop at ECS Tuning | |||||
| 22 | Płytka dystansowa | D=1MM | X | 41627112645 | $3.58 | Zakończono | Shop at ECS Tuning | |||
| 23 | Sprężyna pokrywy bagażnika | 2 | 51247201463 | $73.60 | Shop at ECS Tuning | |||||
| Dla samochodów z Autom. uruchamianie tylnej klapy |
S316A=Tak |
|||||||||
| 23 | Sprężyna pokrywy bagażnika lewa | 1 | 51247201461 | $80.65 | Shop at ECS Tuning | |||||
| 23 | Sprężyna pokrywy bagażnika prawa | 1 | 51247201462 | $80.65 | Shop at ECS Tuning | |||||
| 24 | Zaślepka | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 25 | Odbojnik | 2 | 51247051785 | $6.58 | Shop at ECS Tuning | |||||
| 26 | Odbojnik | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 27 | Trzpień kulisty | M10 | 2 | 41218407017 | $5.63 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
