Listwa dachowa ozdobna/Reling dachowy for BMW 5 Series E61 LCI 520d (2009)

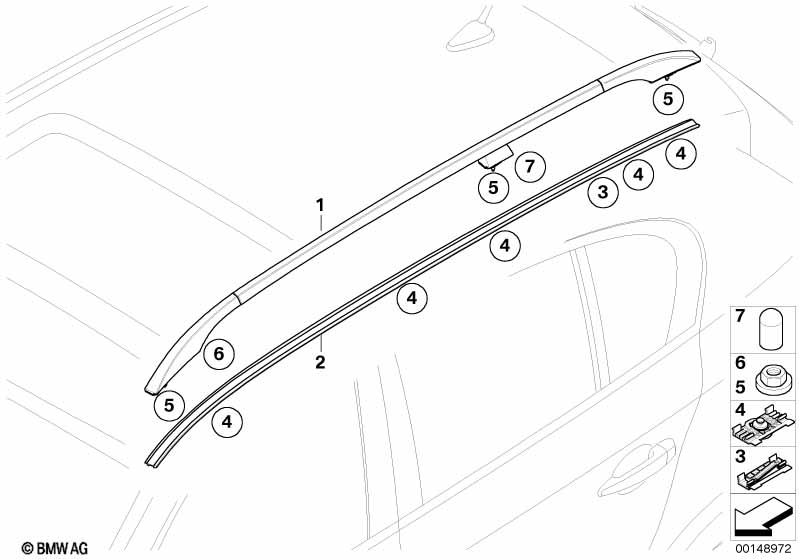

This Listwa dachowa ozdobna/Reling dachowy technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Reling dachowy |
S386A=Tak |
|||||||||
| 01 | Reling dachowy lewy | 1 | 51137079945 | $235.17 | Shop at ECS Tuning | |||||
| 01 | Reling dachowy prawy | 1 | 51137079946 | $235.17 | Shop at ECS Tuning | |||||
| 02 | Listwa ozdobna dachu gruntowana lewa | 1 | 51137146471 | $105.15 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Listwa ozdobna dachu gruntowana prawa | 1 | 51137146472 | $105.15 | Shop at ECS Tuning | |||||
| Dla samochodów z Reling dachowy Przy zamawianiu podać kod koloru |
S386A=Tak |
|||||||||
| 02 | Listwa ozdobna dachu lakierowana lewa | CODE - UNI/MET. | 1 | 51130390346 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Listwa ozdobna dachu lakierowana prawa | CODE - UNI/MET. | 1 | 51130390347 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Reling dachowy |
S386A=Tak |
|||||||||
| 03 | Zaczep | 2 | 51137073396 | $0.85 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Zaczep | X | 51137070747 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Nakrętka samozabezpieczająca | 4 | 07149157028 | Shop at ECS Tuning | ||||||
| 06 | Nakrętka z podkładką | M8 | 2 | 07146965084 | Shop at ECS Tuning | |||||
| 07 | Pokrywka | 2 | 51437064777 | $0.13 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
