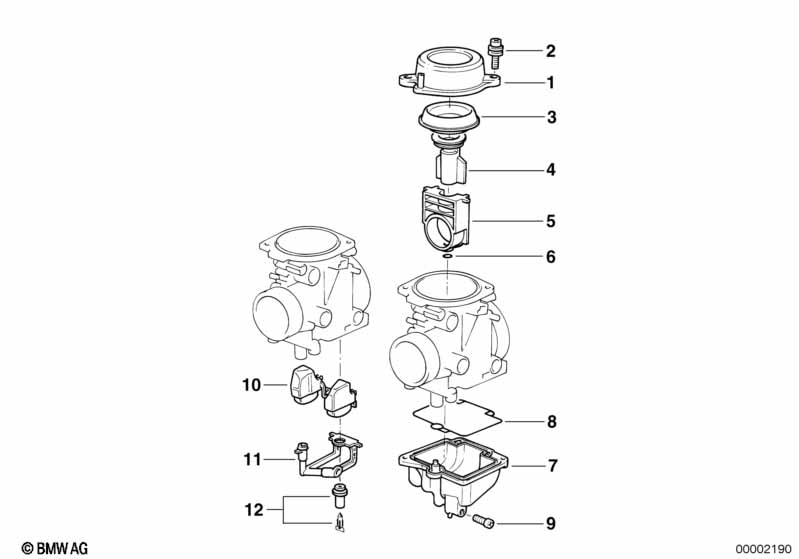

E169 (F 650, F 650 ST) F 650 ST 97 (0163,0168) Carburetor cap/piston/float
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 2 | 13112343376 | $33.46 | ENDED, +core | ||||
| 02 | Fillister head screw | 4 | 13112343414 | $2.68 | |||||
| 03 | Diaphragm | 2 | 13112343379 | $31.90 | |||||
| 04 | Piston | 2 | 13112343378 | $50.65 | |||||
| 05 | Carrier | 2 | 13112343374 | $28.42 | |||||
| 06 | O-ring | 2 | 13112343393 | $1.92 | ENDED | ||||
| 07 | Float chamber | 2 | 13112343399 | $35.90 | ENDED | ||||
| 08 | Gasket | 2 | 13112343392 | $8.35 | |||||
| 09 | Screw | 2 | 13112343386 | $3.99 | |||||
| 10 | Float | 2 | 13112343394 | $45.17 | +core | ||||
| 11 | Float bracket with jet | 1 | 13112343403 | $15.88 | |||||
| 11 | Bracket right | 1 | 13112343404 | $9.35 | |||||
| 12 | Float valve assy | 2 | 13112343398 | $45.60 | +core |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
