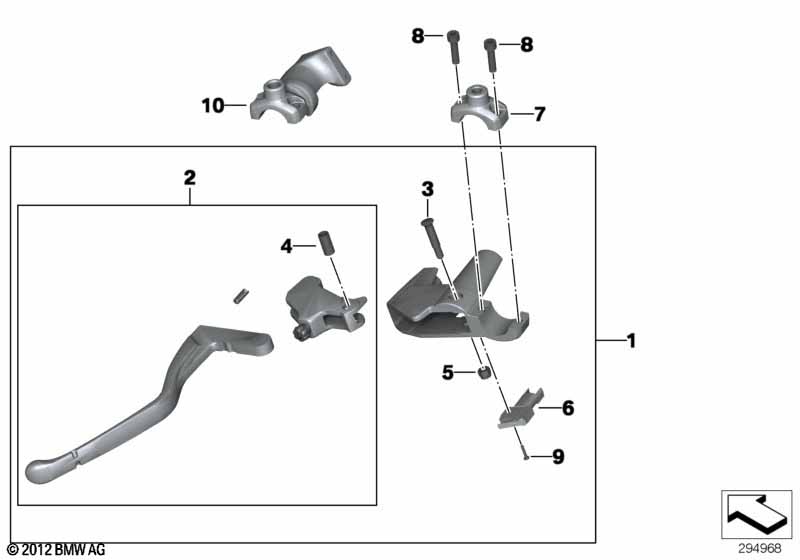

K73 (F 800 R) F 800 R (0217,0227) Clutch control assembly
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch lever assembly, adjustable | 1 | 32728523463 | +core | |||||
| only applies to | |||||||||
| -- | Clutch cable | X | 32738535164 | +core | |||||
| 02 | Clutch lever | 1 | 32727705606 | $101.75 | +core | ||||
| 03 | Countersunk head screw | M5X30 | 1 | 32727673989 | $6.44 | ||||
| 04 | Sleeve | 1 | 32727673990 | $8.39 | |||||
| 05 | Self-locking hex nut | M5 | 1 | 52537655579 | $1.62 | ||||
| 06 | Microswitch | 1 | 61317671111 | $35.07 | +core | ||||
| only in conjunction with | |||||||||
| -- | Countersunk screw | M2X10-8.8-MK | 1 | 07119906959 | |||||
| 07 | Clamp with mirror mount | M5 | 1 | 32727673917 | $36.74 | ||||
| 08 | ISA screw | M5X20 | 2 | 07129904792 | $2.03 | ||||
| 09 | Countersunk screw | M2X10-8.8-MK | 1 | 07119906959 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
