2476 R75/5     Oil Pan

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Engine => Oil Pan

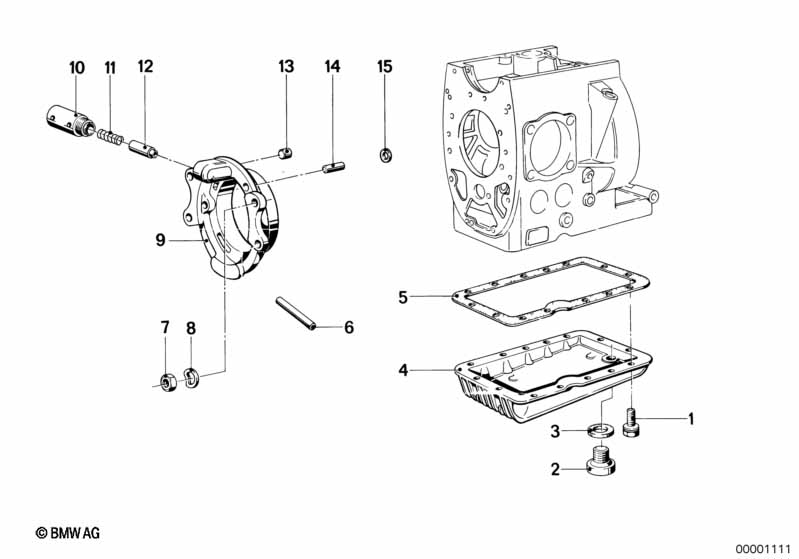

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Hex bolt with washerM6X20-Z3-ZNS?07119913114ENDED
02Screw plugM18X1,5-ZNS107119919143ENDED
03Gasket ringA18X22107119963300$0.57
04Oil Pan109/197511131337330$124.04+core
05Gasket111131338427$11.97
06Dowel pin4X10107119942050$0.60
07Hex nutM8-ZNS107119922856ENDED
07Hex nutM8-8-ZNS3107119904032$0.16
07Nut211111253243$9.16
08WAVE WASHERB8407119932093$0.38
09BEARING COVER111111259593$220.31+core, See SI 111780170
10HOLLOW BOLT111111335299$29.81
only in conjunction with
--Piston111421271320$3.21
11Compression spring111411744324$1.27
12Piston111421271320$3.21
only in conjunction with
--HOLLOW BOLT111111335299$29.81
13Plug111111744326$2.80
14Pin111111253184$1.71
15Cover lidD=16MM107119932412$0.37

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • SI, TÜV, SDB = Service Information (refer to TIS).
  • ENDED = The part has been discontinued.
