248 R65     Fork bridge

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Front axle, front suspension

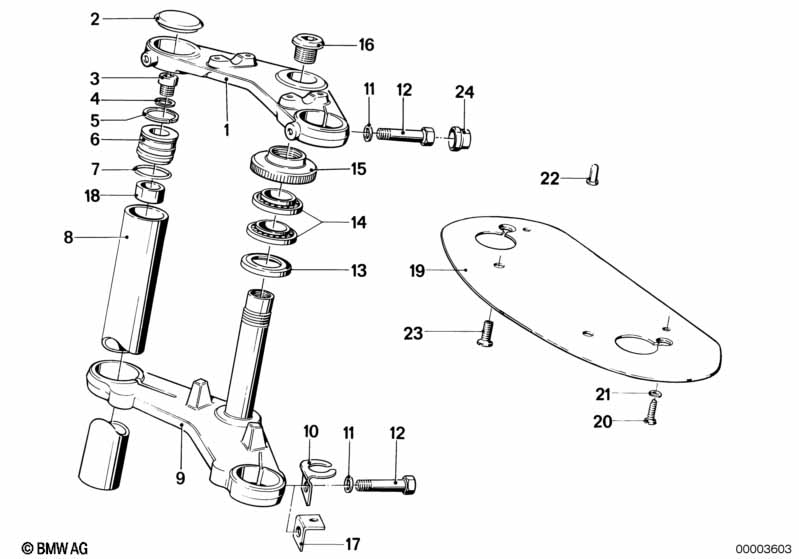

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Upper fork cross brace131421237191$124.48
02Cover231421239765$4.73
03Fillister-head screwM10X12207119919662ENDED
04Gasket ringA10X13,5-CU207119963072$0.11
05SNAP RING231421239029$2.74
06Spring retainer231421237208$10.14
07O-ring231421237245$1.12
08STANCHION231421237196$460.09+core
09Lower fork cross brace131421237192ENDED
10Hose clamp134321237255$1.39
11WasherA10,5407119931020ENDED
11WasherZNS3407119904198$0.45
12Hex boltM10X45407119901169$2.36
13Ring131421234509$3.03
14TAPERED ROLLER BEARING28X52X16207119985070+core, ENDED
15KNIRLED NUT131421237244$52.27
16Screw131421237243$30.89

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
