K26 R 1200 RT 05 (0368,0388)     COMBINATION SWITCH AT HANDLEBAR

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => General Electrical System => Switch

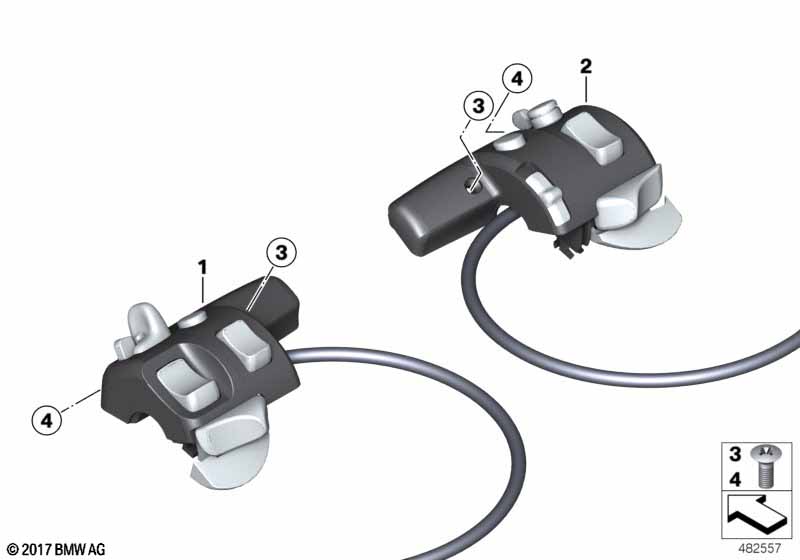

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
For vehicles with
Cruise control

X538A=Yes
01Combination switch left108/200561317708339$460.94+core
01Combination switch left108/200561317708333$460.94+core
For vehicles with
Cruise control = No

X538A=No
01Combination switch left108/200561317708337$325.99+core
For vehicles with
ESA

X416A=Yes
01Combination switch left108/200661317708331+core
For vehicles with
ESA
and
Cruise control

X416A=Yes

X538A=Yes
01Combination switch left108/200661317708335$483.78+core
For vehicles with
ESA = No
or
Cruise control = No

X416A=No

X538A=No
01Combination switch left108/200561317708329$325.99+core
02Combination switch right108/200561317708344+core
02Combination switch right161317708336$375.84+core
For vehicles with
Authorities USA

X113A=Yes
02Combination switch rightUS161317708342$400.73+core
For vehicles with
On-board computer

X539A=Yes
02Combination switch On-board computer ri.108/200561317708346+core
02Combination switch right108/200561317708332+core
For vehicles with
Heated handlebar grips

X519A=Yes
02Combination switch f htd handlebar grip108/200561317708348+core
02Combination switch right108/200561317708334+core
For vehicles with
Heated handlebar grips
and
On-board computer

X519A=Yes

X539A=Yes
02Combination switch BC/heated grip right108/200561317708352+core
02Combination switch right108/200561317708338+core
For vehicles with
Seat heating
and
Heated handlebar grips

X518A=Yes

X519A=Yes
02Switch heated grip/seat heating right108/200561317708350+core
02Combination switch right108/200561317708336$375.84+core
For vehicles with
Seat heating = No
or
Heated handlebar grips = No
or
On-board computer = No

X518A=No

X519A=No

X539A=No
02Combination switch right108/200561317708330+core
For vehicles with
Seat heating
and
Heated handlebar grips
and
On-board computer

X518A=Yes

X519A=Yes

X539A=Yes
02Switch BC/heated grip/seat heating right108/200561317708354$400.73+core
02Combination switch right108/200561317708340+core
03COUNTERSUNK HEAD SCREWM4X10207119904433
04ScrewKA30X16261317650807$1.62
For vehicles with
Radio with CD drive

X540A=Yes
05Remote control radio165147671600$353.11+core
For vehicles with
ESA

X416A=Yes
05Switch ESA108/200661317671601$277.13+core
For vehicles with
Radio with CD drive
and
ASC

X540A=Yes

X650A=Yes
05Remote control radio108/200665147701263$366.54+core
For vehicles with
ESA
and
Radio with CD drive

X416A=Yes

X540A=Yes
05Remote control radio108/200665147671602$366.54+core
06Fillister head screwM5X12246632313281$0.87
For vehicles with
Radio with CD drive = No
and
ASC

X540A=No

X650A=Yes
07SWITCH ASC161317689820$118.96+core
08Switch-housing upper section161317697279$21.83
09Switch housing, bottom part161317697288$16.54
10Bracket for switch housing, left161317653977$9.15
11ScrewM4X16107119904454$4.54
12Fillister head screwM5X12246632313281$0.87
13SELF TAPPING SCREW3X12165147651032$1.28

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
