259 (R 1100 S, R 1100 RS) R 1100 S 98 (0422,0432) Front wheel brake, Integral ABS

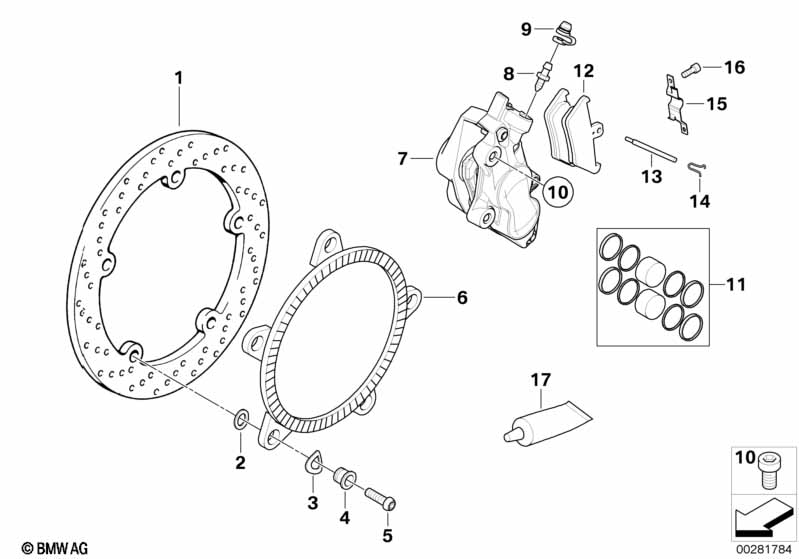

Front wheel brake, Integral ABS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Integral ABS

X645A=Yes
For vehicles with
Integral ABS

X645A=Yes
01 Brake rotor, front D=320/5MM 2 11/2000 06/2003 34112338228 $318.86 +core
02 Stop disk 5 11/2000 06/2003 34117670217 $1.94
03 Wave washer 10 11/2000 06/2003 34112314888 $1.87
04 Roll pin 10 11/2000 06/2003 34112314887 $8.61
05 Oval head screw M8X25-10.9 ZNS3 10 11/2000 06/2003 36317709543 $2.80
06 Sensor ring, front, integral ABS 1 11/2000 06/2003 34527667325 $89.47 +core
07 Brake caliper without pads, left 1 11/2000 06/2003 34117722525 +core
07 Brake caliper without pads, right 1 11/2000 06/2003 34117722526 +core
08 Vent screw 2 11/2000 06/2003 34117658388 $7.00
09 Cap 2 11/2000 06/2003 34117658389 $6.09
10 ISA screw M8X32-10.9 ZNS3 4 11/2000 06/2003 34117713338 $2.58
11 Repair set brake caliper D=32/36MM 2 11/2000 06/2003 34117721664
12 Brake pads kit, green TOKICO 2 11/2000 06/2003 34117690170 $94.89 +core
12 Brake pads kit, green TOKICO 2 11/2000 06/2003 34118395858
13 Pin 2 11/2000 06/2003 34112338251 $7.18
14 Clip 2 11/2000 06/2003 34112338250 $4.21
15 Spring, brake caliper, left 1 11/2000 06/2003 34112338247 $12.29
15 Spring, brake caliper, right 1 11/2000 06/2003 34112338248 $12.29
16 Fillister-head screw M4 4 11/2000 06/2003 34112338249 $3.84
17 Brake pad paste 100G X 11/2000 06/2003 83192158852
Notes
  • +core = plus core charge (possibility of a return of the old part)
