47E1 R 100 GS     COCKPIT / TELLTALES

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => INSTRUMENTS => Instrument cluster

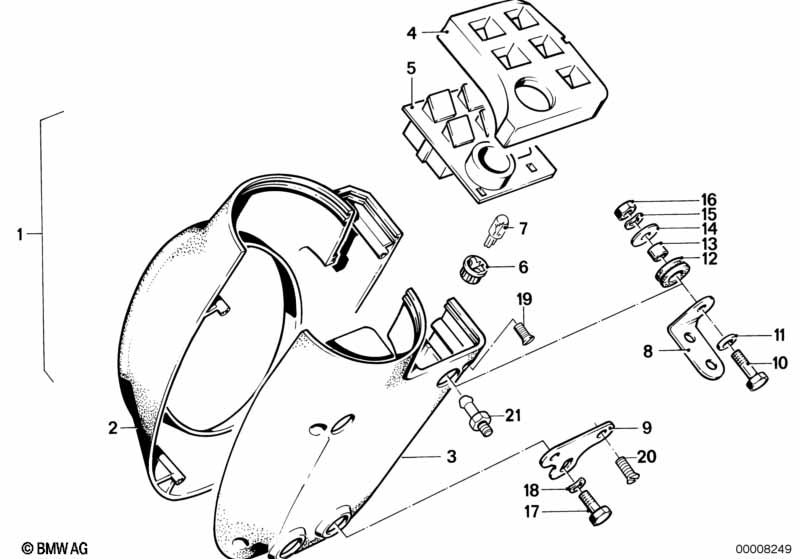

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
02HOUSING HALF FRONTALPINWEISS162211456571ENDED
02HOUSING HALF FRONT162211244042+core, ENDED
only in conjunction with
02HOUSING HALF FRONTMARRAKESCH/ROT162211456312+core, ENDED
only in conjunction with
--DRILLING STENCIL146632303924ENDED
03HOUSING HALF REAR162211244041+core, ENDED
03HOUSING HALF REARMARRAKESCH/ROT162211456314+core
03HOUSING HALF REARALPINWEISS162211456569+core, ENDED
04Cover162211244755ENDED
05Tell-tale162141244756$122.12
06Bulb socket562131243518$3.68
07BULB662141244727ENDED
09BRACKET LOWER162211244541$17.46
10Hex boltM6X20207119913016$0.60
11Washer6,4207119931044$0.58
12Rubber grommet462211244064$2.80
13Bush262211244068$1.94
14Washer262211244072$3.96
15WAVE WASHERB6207119932099$0.38
15WAVE WASHERB6-ZNS3207119904496ENDED
16Hex nutM6207119905543$0.38
17Hex boltM6X12-ZNS107119913014ENDED
17Hex boltM6X12-8.8ZNNIV107119905524$0.27
18WAVE WASHERB6107119932099$0.38
18WAVE WASHERB6-ZNS3107119904496ENDED
19COUNTERSUNK HEAD SCREWM4X50162211459938ENDED
20COUNTERSUNK HEAD SCREWM4X25362211459939$2.03
21Pin246631244594$13.11

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
