K589 K 100 RS 83 (0502,0503,0513)     SET CASE HOLDER

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Frame and mounting parts

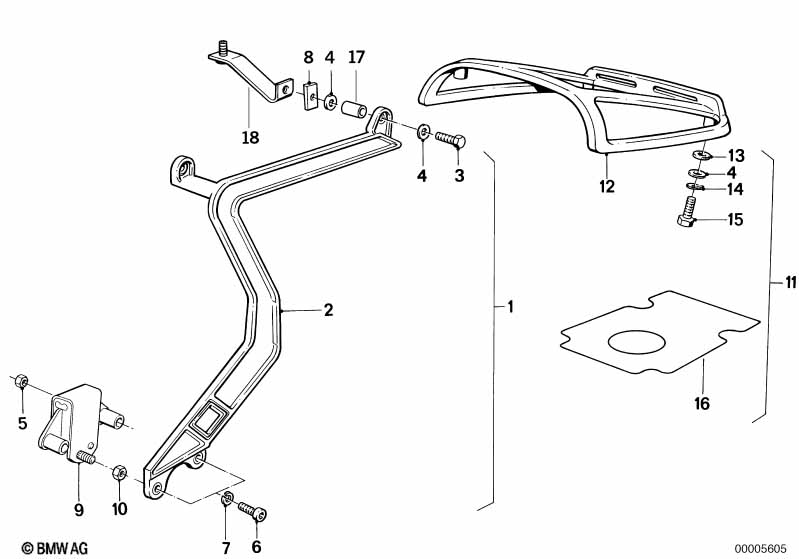

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01SET CASE HOLDER146542303189+core, ENDED
CONSISTING OF
02LEFT CASE HOLDER146542300037$88.75+core
02RIGHT CASE HOLDER146542300038$88.75+core
03Hex boltM6X20407119913016$0.60
04WasherA6,4607119903791$0.11
05SELF-LOCKING HEX NUTM6207129946350ENDED
05Hex nutM6 ZNS3207129904868ENDED
06Fillister-head screwM6X40207119919628$0.87
CONSISTING OF
06Fillister-head screwM6X16-ZNS207119901438ENDED
06Fillister-head screwM6X16207129905536$0.64
06Fillister-head screwM6X25-ZNS209/198507119919625$0.40
07SPRING WASHER6-ZN209/198507119933231$0.09
07WAVE WASHERB6609/198507119932099$0.38
08CAGE NUTM6407129926512$0.75
09Rubber Mounting109/198518211454982$42.21
10SELF-LOCKING HEX NUTM8109/198507129964675$0.56
11Set luggage carrier146542300350+core, ENDED
CONSISTING OF
12Luggage grid152532300052$81.25+core
13RUBBER WASHER446621230798$2.23
14WAVE WASHERB6-ZNS3407119904496ENDED
14WAVE WASHERB6407119932099$0.38
15Hex boltM6X28407119913484ENDED
15Hex boltM6X28-ZNS407119913021$2.30
16Foil151142303387$7.54

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
