89V1 K 100 RS (0523,0533)     Center stand

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Frame and mounting parts

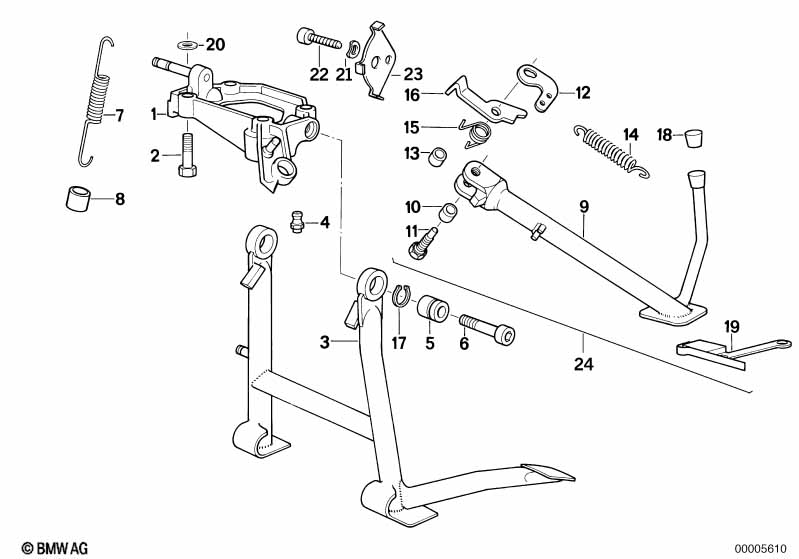

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Supporting bracket111/198946522311150$288.73+core
02Fillister-head screwM10X40346521450717$3.02
03Center stand111/198946522311490$242.83+core
04NIpple223411238306$1.10
05Sleeve211/198946522311493$13.03
06COUNTERSUNK HEAD SCREWM10X50246521454158$3.02
07Tension spring246521450075$5.68
08Rubber grommet246521237786$2.80
09Side stand146532312787$176.17+core
10Bushing146532310471$12.71
11Hex bolt146532310465$10.31
12Shackle146531454246$13.59
13Bushing16X10,2X12,2146532310473$13.84
14Tension spring246531450989$5.68
15Spring146532311037$6.89
16Lever146532312072$6.81
17Lock Ring20X1,2107119934132$0.25
18Cap112/199146532310468$2.80
18Cap112/199146532312966$2.58
19Switch161311459959$68.15+core
20Washer10,5207119931698ENDED
21WAVE WASHERB6-ZNS3107119904496ENDED
21WAVE WASHERB6107119932099$0.38
23Bracket161132305199$2.41

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
