K569 (K 75, K 75 c, K 75 s, K 75 RT) K 75 85 (0562,0571) BRAKE PIPE/FRONT BRAKE HOSE

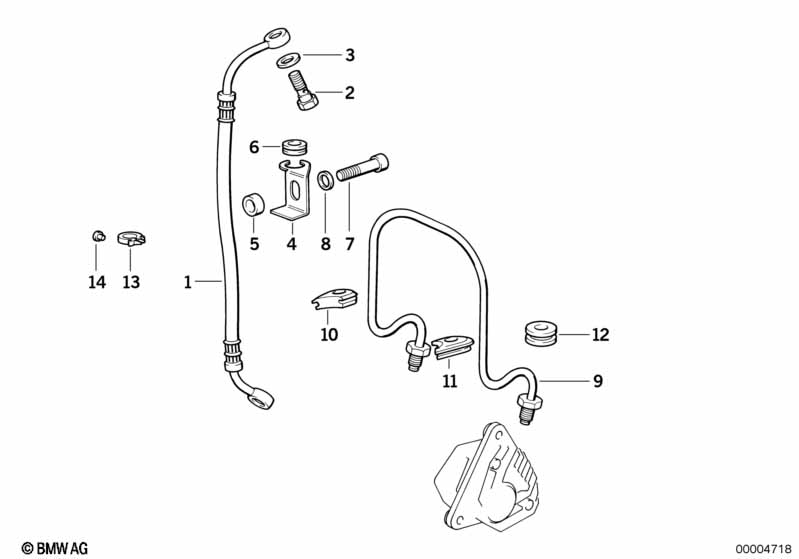

BRAKE PIPE/FRONT BRAKE HOSE
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake hose L=810MM 1 09/1991 34322312899 $85.90 +core
01 Brake hose L=790MM 1 09/1991 34322312907 $85.90 +core
02 Hollow bolt 2 09/1991 34321242205 $4.47
03 Gasket ring A10X13,5-CU 4 09/1991 07119963072 $0.11
09 Brake pipe 1 08/1992 34322312691 $22.61
10 Grommet, right 1 08/1992 34322312696 $2.80
11 LEFT RUBBER SOCKET 1 08/1992 34322312695 $2.80
12 Grommet 2 08/1992 34322310917 $2.80
13 Cable holder D=16,7MM 1 08/1992 61131369668 $0.35
14 Plug 1 08/1992 46622309944 $0.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
