K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Handle unit, right

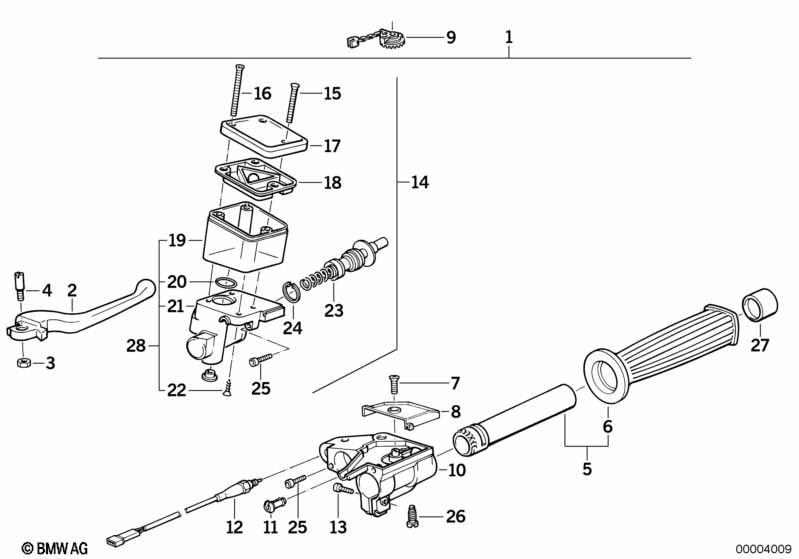

Handle unit, right
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handle unit, right D=13MM 1 32722310742 $348.62 +core, SI 341790558
See Service Information
02 Hand lever, black, right 1 32721457058 $53.98
03 Nut, self-locking M6 1 32721238382 $2.61 ENDED
03 Nut, self-locking M6 1 32728532969
04 Screw M6 1 32721451749 $5.37
05 Throttle grip 1 32721454129 $43.92
05 Handle tube/right foam rubber handle 1 32722311538 $72.67 ENDED, +core
only in conjunction with
-- Cap right 1 32721457396 $1.74 ENDED
06 Handle right 1 32721237812 $12.56 +core
07 Screw 1 32721454245 $3.39
08 Cover 1 32721457037 $28.74
09 Cam disc 1 32721457036 $28.86
only applies to
-- Cover X 32721457037 $28.74
10 Housing 1 32721451734 $100.25 +core
11 Support 1 32721451622 $4.93
12 Switch 1 61311459569 $25.06 +core
13 Countersunk head screw M6X20 1 01/1993 32722311502 $2.03
only in conjunction with
-- Nut 1 01/1993 32722311141 $2.06
14 Cylinder with piston D=13MM 1 32722310786 $253.68 +core
15 Countersunk head screw M5X45 1 07119928128 $0.87
16 Countersunk head screw M5X55 2 07119928129 $1.77
17 Cover 1 32721454944 $12.83
18 Rubber boot 1 32721451742 $13.31
19 Container 1 32721451746 $20.58
20 O-ring 1 32721242624 $4.09
22 Screw 1 32721242625 $0.84
23 Piston D=13MM 1 32722302356 $71.14 +core
24 Lock Ring 17X1 1 07119934620 $1.29
25 Fillister-head screw M5X20 2 32721451987 $1.74
27 Cap right 1 32721457396 $1.74 ENDED
only in conjunction with
-- Foam rubber handle right 1 32722311540 $32.86 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
  • ENDED = the part has been discontinued (no longer available).
