K569 K 75 S (0563,0572)     TOP AIR CLEANER HOUSING/AIR-FLOW SENSOR

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Fuel system => Intake muffler

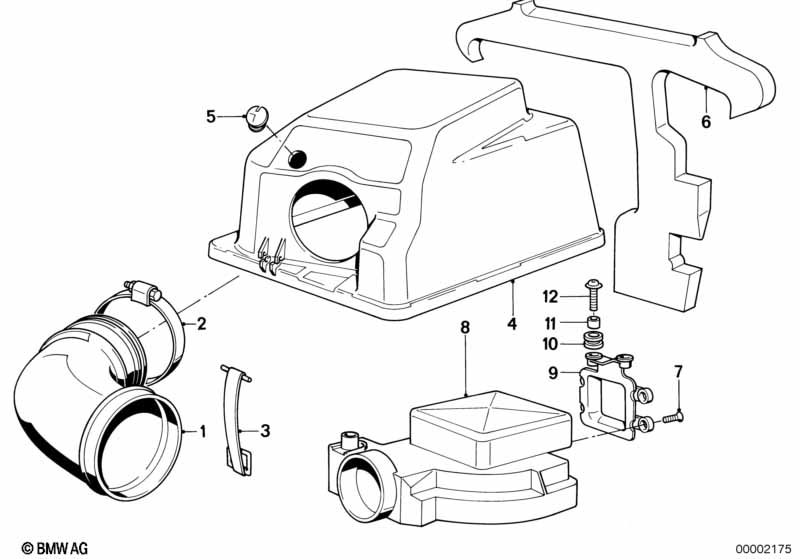

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Hose assy113311460563$40.04
02Hose clampD=72113721460505$3.48
03Spring313721460488$12.05
04AIR CLEANER HOUSING TOP113721460338$22.04
05Blind plug113721460802$2.58
For vehicles with
Switzerland version
05Badge113721464075
07COUNTERSUNK HEAD SCREWM6X12452101817063$0.92
08Volume air flow sensor113621460447$993.71+core
09Bracket113621460738$13.27
10Rubber grommet231421236240$1.93
11Bush231421236241$0.92
12Fillister head screw213721460964$2.12

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
