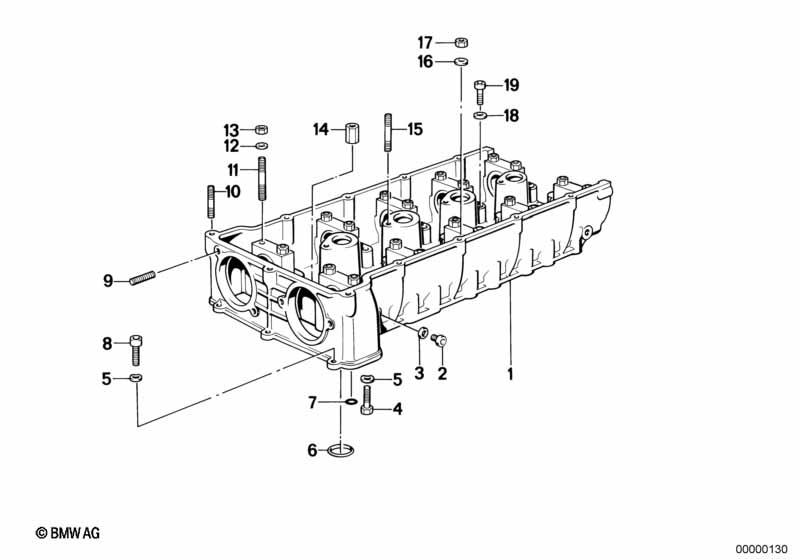

3' E30 M3 CYLINDER HEAD/INTERMEDIATE HOUSING

CYLINDER HEAD/INTERMEDIATE HOUSING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
NATIONAL VERSION JAPAN

L807A=Yes
01 Housing 1 11121308424 $1978.02 ENDED
02 Screw plug M10X1 1 12/1990 07119919112 $1.17 ENDED
02 Screw plug M10X1-ST-ZNS3 1 07119904393 $1.89
03 Gasket ring A10X13,5-AL 1 07119963073 $0.11
04 Fillister-head screw M6X30 2 12/1990 07119919928 $0.38 ENDED
04 ISA screw M6X30-8.8-ZNNIV 2 07129905386 $0.86
04 Hex bolt with washer M6X40-Z3 2 07119913951 $0.30
05 WAVE WASHER B6 5 07119932099 $0.38
05 WAVE WASHER B6-ZNS3 5 07119904496 $1.78 ENDED
06 O-ring 28X2 4 11121304174 $3.25
07 O-ring 12X1,5 1 11121304173 $2.21
08 Fillister-head screw M6X20 2 12/1990 07119919967 $0.24 ENDED
08 ISA screw M6X20-8.8-ZNNIV 2 07129901130 $0.38
08 Fillister-head screw M6X30 1 11121307145 $4.68
09 Stud bolt M6X25-ZN 6 07129908100 $0.20
10 Stud bolt M6X35-ZN X 07129908103 $0.25
11 Stud bolt M8X55 X 07129908137 $0.47
12 Washer 8,4 X 07119931697 $0.40
13 Hex nut M8-ZNS X 07119922856 $0.56 ENDED
13 Hex nut M8-8-ZNS3 X 12/1990 07119904032 $0.16
13 Hex nut M8-8-ZNNIV SI X 07119905515 $0.16
14 Hex nut M8-Z1 2 11121312308 $4.68
15 Stud bolt M6X45 5 07129908105 $0.82
16 Washer 8,4 X 07119931697 $0.40
17 Hex nut M8-ZNS X 07119922856 $0.56 ENDED
17 Hex nut M8-8-ZNS3 X 12/1990 07119904032 $0.16
17 Hex nut M8-8-ZNNIV SI X 07119905515 $0.16
18 Shim 7X13X1 X 07119932622 ENDED
19 Fillister head with washer M7X30-Z1 X 11121312307 $1.62
Notes
  • ENDED = the part has been discontinued (no longer available).
