E30 325e     FUEL TANK/FUEL FEED

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Supply => Fuel tank

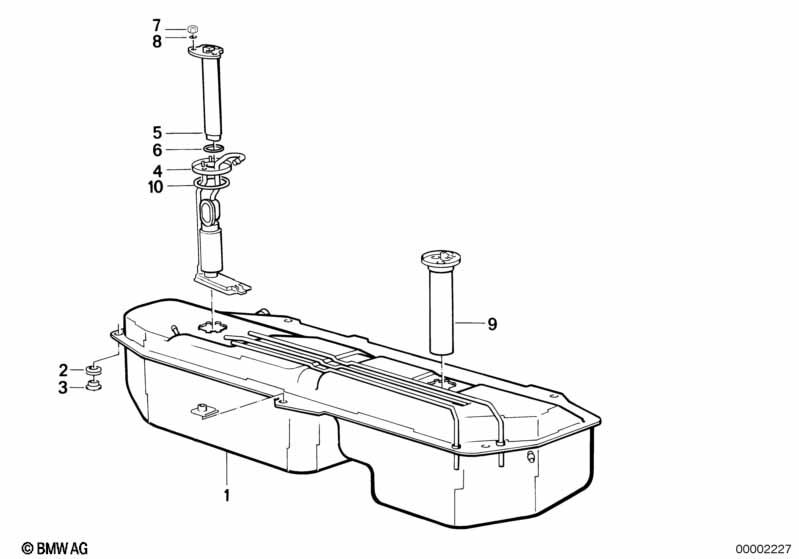

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01METAL FUEL TANK63L109/198716111180175$722.48
02Rubber grommet509/198716111180152$3.58
03Spacer sleeve509/198716111180153$4.18
04SUCTION DEVICE W.PUMP109/198716141184022$402.64
05SENDING UNIT ASSY METAL TANK109/198716141152266$138.71
06Gasket ring109/198716121150391$4.18
07Hex nutM5409/198707119922038$0.09
08Washer5,3 ZNS409/198707119931029ENDED
08Washer5,3409/198707119936439$0.40
08Washer5,3 SW409/198707119931030$1.34
09SENDING UNIT ASSY METAL TANK109/198716141179720$138.71
10O-ringD=58,8X4,2109/198716111744369$1.68

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
