5' E12 528i REAR AXLE SUPPORT/WHEEL SUSPENSION

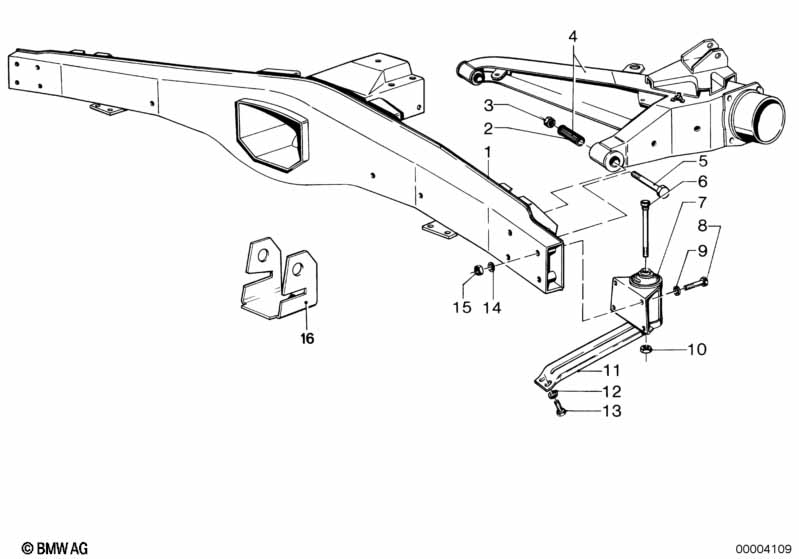

REAR AXLE SUPPORT/WHEEL SUSPENSION
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 REAR AXLE CARRIER 1 33311124095 $431.92
02 SET RUBBER MOUNTING ECCENTRIC D=30MM 2 33329058822 $33.38
02 SET RUBBER MOUNTING D=30MM 2 33329061945 $26.77
03 SELF-LOCKING HEX NUT M12X1,5-10-PHR 4 07129900047 $0.62
04 Trailing arm, left 1 33321124857 $581.62 ENDED
04 Trailing arm, right 1 33321124858 $581.62
05 Hex bolt M12X1.5X90 3 07119914667 $1.78
05 Hex bolt M12X1,5X100 1 07119914678 $2.35
06 KNURLED BOLT M14X1,5X30 10.9 2 33323628167 $7.58
07 RUBBER MOUNTING LEFT 1 33311108755 $103.39
07 RUBBER MOUNTING RIGHT 1 33311108756 $103.39
08 Hex bolt M8X50 8 07119912517 $0.82
09 Washer 8,4 8 33311108204 $0.18
10 SELF-LOCKING HEX NUT M14X1,5 2 07129922745 $1.04
11 Push rod 2 33333628172 $32.53
12 Washer A8,4X25 4 23711246623 $0.20 ENDED
12 Washer A8,4X25 4 07147201571 $0.20
13 Hex bolt M8X18 4 07/1981 07119913627 $0.24 ENDED
13 Hex bolt M8X18-8.8-ZNS3 4 07119904146 $0.65
14 Washer A8,4 8 33311108205 $0.16
15 SELF-LOCKING HEX NUT M8 8 07129922716 $0.36
16 Heat resistant plate 1 33311119066 $5.90 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
