F30 328i     Crankshaft-Pistons

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Crankshaft drive

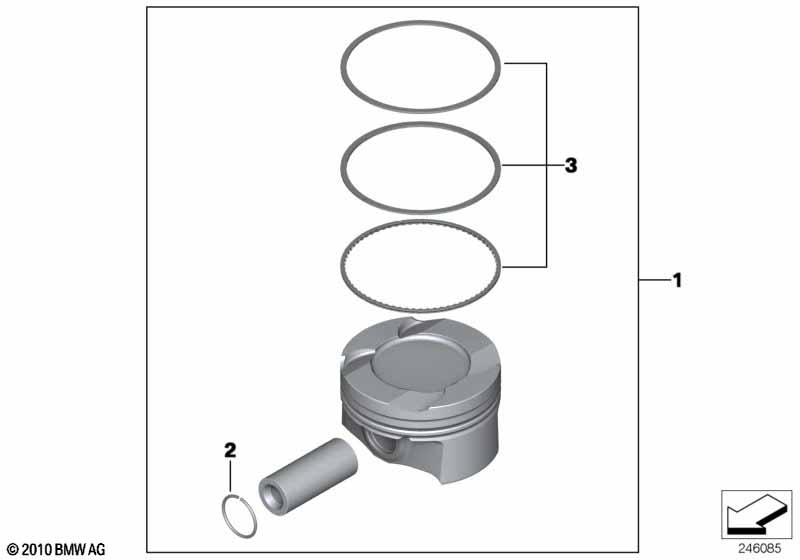

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Piston404/201311257640166
01Piston408/201311258617082
01Piston408/201311258606459
only in conjunction with
--Oil Spraying NozzleZYLINDER 1+3208/201311428611141
--Oil Spraying NozzleZYLINDER 2+4208/201311428611142
01Piston408/201311258606459
02SNAP RING22X1,6811257561710$2.32
03REPAIR KIT PISTON RINGS(0)411257594453

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
