 RealOEM.com Home => Select another car => Engine electrical system => Starter

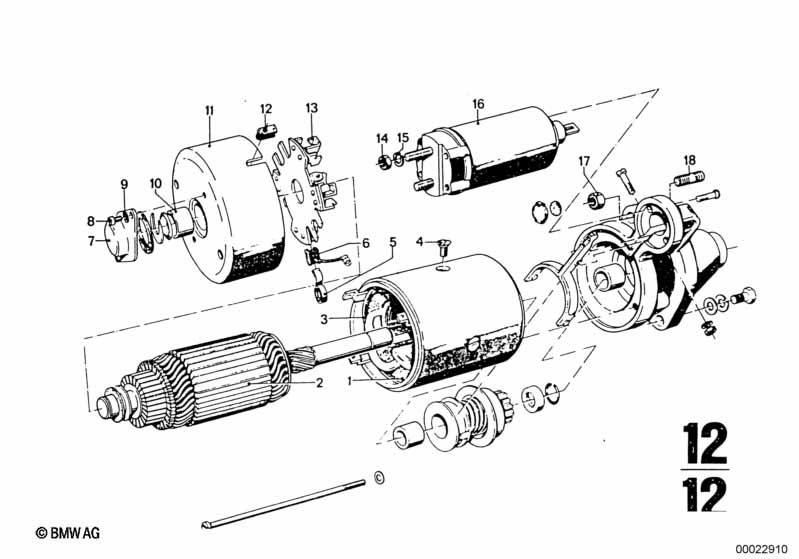

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01EXCITER WINDING105/197102/197712411354569ENDED
02ARMATURE105/197102/197712411354574ENDED
03INSULATING105/197102/197712411354570ENDED
04COUNTERSUNK HEAD SCREW412411354571ENDED
05Compression spring412418620143ENDED
06CARBON BRUSH SET105/197102/197712411354576
07Covering cap112411289491$1.32
08Fillister-head screwAM4X8205/197102/197707119919367$0.09
09SET WAVE WASHER 25B4207509064029ENDED
10Bushing112411722916$3.85
11COLLECTOR GUIDING112411268371ENDED
12Rubber grommet112418620102ENDED
13BRUSH HOLDER PLATE112411274607$19.96
14Hex nutBM8107119921077ENDED
14Hex nutM8-05-ZNNIV SI107119904948$1.00
15SPRING WASHERB8107119933096$0.18
16SOLENOID SWITCH105/197102/197712411354579$106.41

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
