E46 320d     FUEL SUPPLY/FILTER

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Fuel Supply

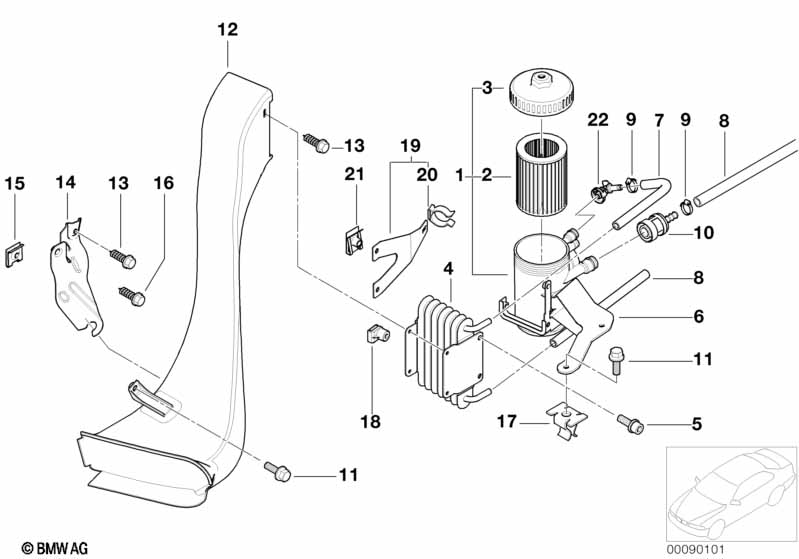

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  ifor continuation of air duct see HG 51
01Fuel filter109/200113322246878
02Fuel filter109/200113322246881$17.48
03Cover109/200113322246880
04Fuel radiator109/200113327792140
05Torx boltM6X14409/200113322249444
06BRACKET FUEL STRAINER109/200113322247412
07Fuel hose109/200113537786395
08Fuel hose8X13MM?09/200016121180409$20.43
08Fuel hose8X13MM?09/200113537529775$44.77
09Hose clampL12-15209/200107129952104$1.18
10Connection109/200113532247700
11Hex bolt with washerM6X20309/200107119904527$0.44
For vehicles with
Aerodynamics package = No

S716A=No
12Air duct109/200113322247413
13Hex head screwST4,8X16-ZNS3307/200007119901299$0.25
13Hex boltTS5X17 SW8 D=16309/200107149126885$0.49
14AIRDUCT BRACKET109/200113322247699
15Body nutST4,8-6109/200107129925711$0.20
16Hex head screwST4,8X19-C-Z2109/200107119916949$0.25
17PRESTOL-CAGE209/200132411095443$1.48
18Plastic nut209/200113322249575
19Bracket, return hose109/199909/200164216905345
20ClampD=24,5MM109/199909/200161131379580$0.63
21NUT HOLDERM6109/199909/200111142244519$1.95
22Connection90°109/200113532249984

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
